H05RR-F H05RN-F Light-Medium Duty Rubber Flexible Cable 300/500V
H05RR-F H05RN-F light-medium duty rubber flexible cable is designed for the connection of electrical appliances. It is suitable for light duty and medium duty flexible power connections in dry and damp areas, with temporary outdoor use depending on the cable type and application conditions.
Application
H05RR-F rubber flexible cable is a lightweight cable designed to withstand light mechanical stress. It is suitable for internal applications in dry and damp areas and can be used temporarily outdoors. It is commonly connected to handheld household items such as office and kitchen appliances, but is not intended for industrial, commercial or agricultural use.
H05RN-F rubber flexible cable is a medium duty cable designed to withstand light to medium mechanical stress. It is suitable for internal or external applications, including damp or dry areas. It is commonly connected to horticulture tools and workshop tools, and can also be used for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts.
Structure
- Conductor: Stranded plain or tinned copper conductors
- Insulation: Rubber core insulation
- H05RR-F Sheath: Black natural or synthetic rubber outer sheath
- H05RN-F Sheath: Black polychloroprene rubber, PCP neoprene outer sheath
- Core Identification: 2 cores coloured to VDE 0293 without earth, green/yellow
- Core Identification: 3-5 cores coloured to VDE 0293 with earth included in core count
Features
- Light-medium duty rubber flexible cable for appliance connection
- Flexible stranded copper conductor for easy installation
- H05RR-F suitable for light mechanical stress applications
- H05RN-F suitable for light to medium mechanical stress applications
- Suitable for dry and damp indoor areas, with temporary outdoor use depending on application
- 300/500V operating voltage with 2000V test voltage
Standards / Certifications
- Core identification according to VDE 0293
- No additional third-party certification is claimed unless specified by customer requirements
Technical Parameters
| Item | Specification |
|---|---|
| Cable Type | H05RR-F / H05RN-F light-medium duty rubber flexible cable |
| Voltage Rating | 300/500V operating |
| Test Voltage | 2000V |
| Temperature Range | -25°C to +60°C operating |
| Bend Radius | 3 x overall diameter fixed, 6 x overall diameter flexing |
| Conductor | Stranded plain or tinned copper conductors |
| Insulation | Rubber core insulation |
| H05RR-F Sheath | Black natural or synthetic rubber outer sheath |
| H05RN-F Sheath | Black PCP neoprene outer sheath |
Specification Data
| Cable Model | Conductor Section Area mm² | Core No. / Dia. No./mm | Insulation Thickness mm | Sheath Thickness mm | Overall Diameter mm | Max. DC Resistance at 20°C Ω/km |
|---|---|---|---|---|---|---|
| H05RR-F | 2 x 0.75 | 24/0.2 | 0.6 | 0.8 | 6.3 ± 0.2 | 26.0 |
| H05RR-F | 2 x 1.0 | 32/0.2 | 0.6 | 0.9 | 6.7 ± 0.2 | 19.5 |
| H05RR-F | 2 x 1.5 | 30/0.25 | 0.8 | 1.0 | 8.3 ± 0.3 | 13.3 |
| H05RR-F | 2 x 2.5 | 49/0.25 | 0.9 | 1.1 | 10 ± 0.2 | 7.98 |
| H05RR-F | 2 x 4.0 | 56/0.30 | 1.0 | 1.2 | 11.7 ± 0.4 | 4.95 |
| H05RR-F | 2 x 6.0 | 84/0.30 | 1.0 | 1.3 | 13 ± 0.4 | 3.30 |
| H05RR-F | 3 x 0.75 | 24/0.2 | 0.6 | 0.9 | 6.8 ± 0.2 | 26.0 |
| H05RR-F | 3 x 1.0 | 32/0.2 | 0.6 | 0.9 | 7.2 ± 0.2 | 19.5 |
| H05RR-F | 3 x 1.5 | 30/0.25 | 0.8 | 1.0 | 8.9 ± 0.3 | 13.3 |
Picture Description

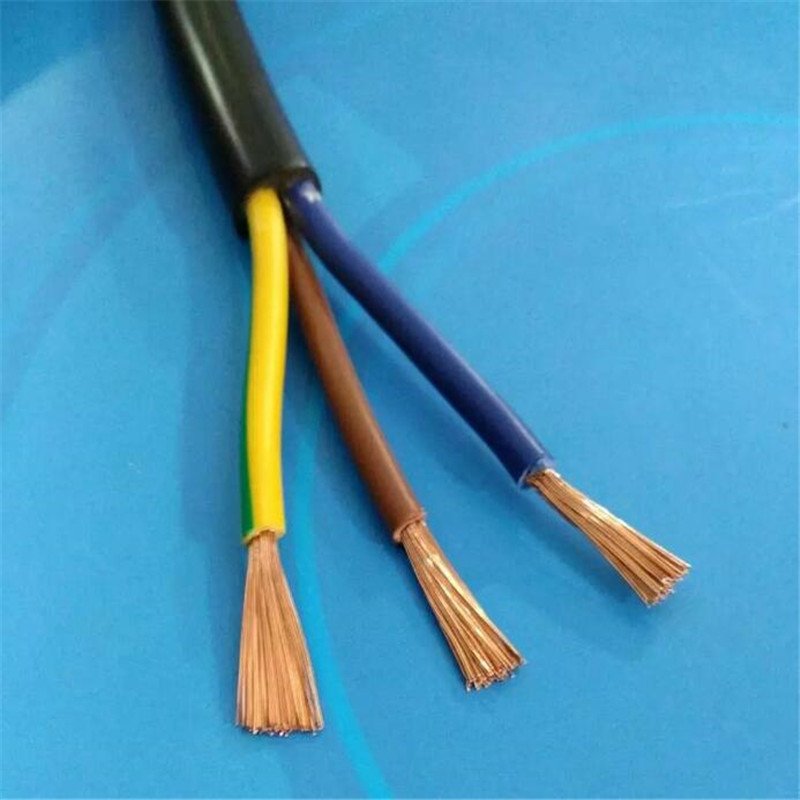

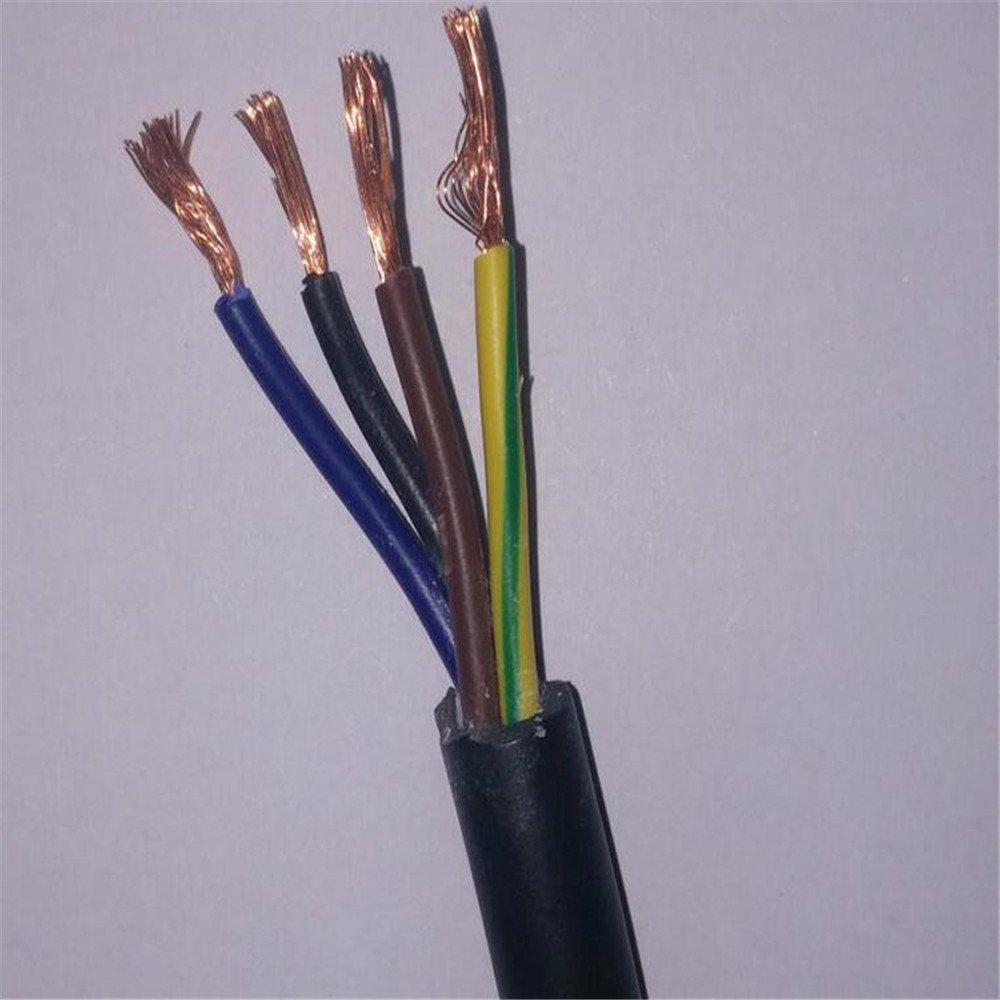

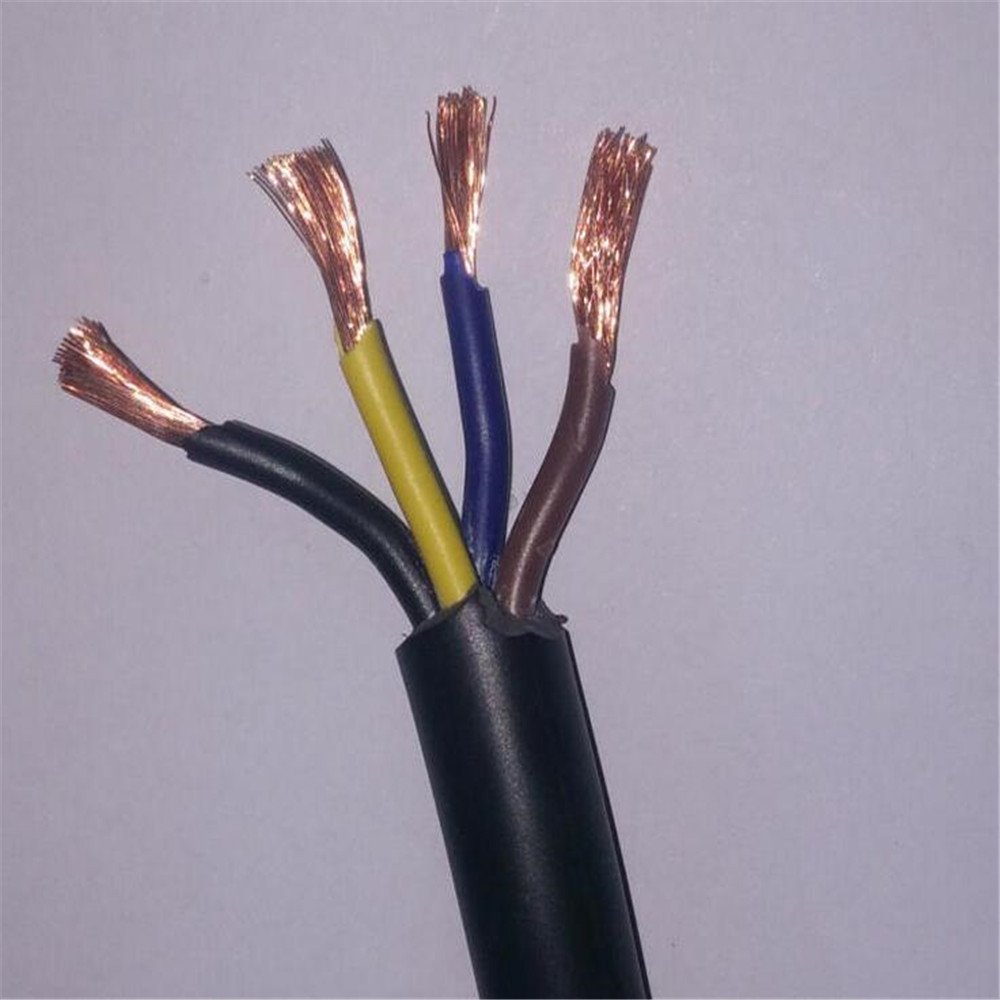

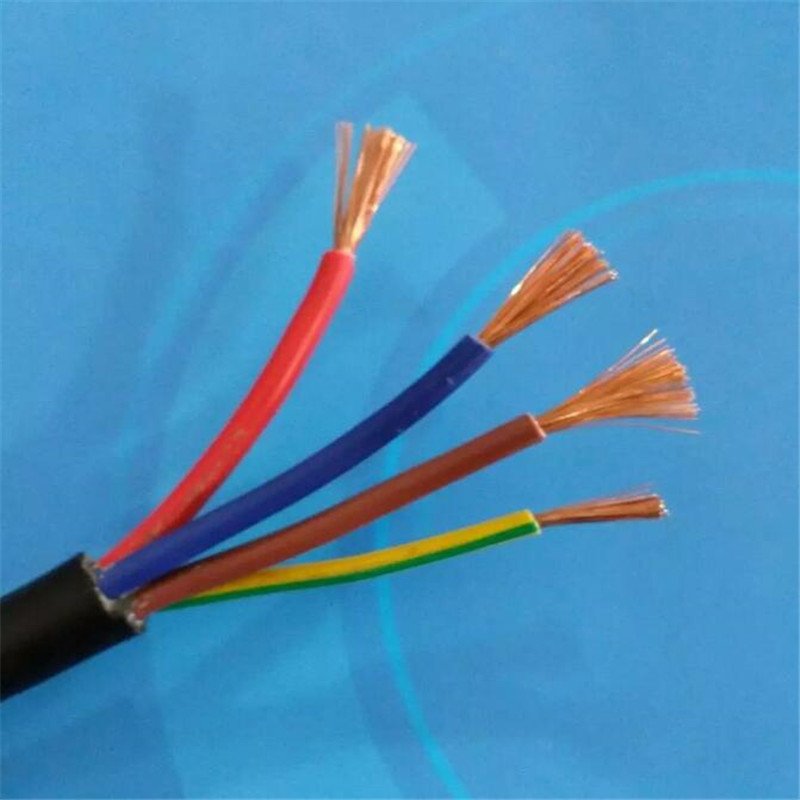

H05RR-F H05RN-F rubber flexible cable with stranded copper conductors, rubber insulation and black rubber or neoprene outer sheath for light to medium duty appliance connection.
