Copper Conductor XLPE/PVC Insulated Power Cable 0.6/1kV
Copper Conductor XLPE/PVC Insulated Power Cable 0.6/1kV is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1kV. The cable can be manufactured with XLPE or PVC insulation, copper conductor, PVC sheath and optional armoured construction for different installation environments.
Application
This 0.6/1kV power cable is used for power transmission and distribution lines in industrial, commercial and infrastructure projects. According to cable type, it can be used indoors, in tunnels, cable trenches, ducts or direct burial applications.
Construction
- Conductor: Solid or stranded copper conductor, aluminum conductor options available
- Insulation: Cross-linked polyethylene (XLPE) or PVC
- Circuit Identification: Red and black insulation identification
- Filler: Polypropylene filament with lapped binding tape
- Inner Sheath: Black PVC
- Armour: Galvanized steel wire, available for armoured cable types
- Core Covering: Binding tape
- Outer Sheath: Black PVC
- Package: Wooden drum or iron-wooden drum
Features
- Reliable low voltage power transmission performance for 0.6/1kV systems.
- XLPE or PVC insulation options for different project requirements.
- Maximum permissible continuous conductor operating temperature: 90°C.
- Maximum short-circuit conductor temperature: 250°C, maximum duration 5 seconds.
- AC test voltage: 3.5kV for 5 minutes.
- Minimum bending radius should not be less than 15 times the cable diameter.
- Flame-retardant properties can comply with Grade A, B, C of GB/T19666-2005 or IEC60332.
Standards / Certifications
Manufactured according to GB/T12706.1, equivalent to IEC60502.1. BS, DIN and ICEA standards are available upon customer request.
Technical Parameters
| Rated Voltage Uo/U | 0.6/1kV |
| Conductor | Solid or stranded copper conductor |
| Insulation | XLPE or PVC |
| Maximum Continuous Operating Temperature | 90°C |
| Maximum Short-circuit Temperature | 250°C, maximum 5 seconds |
| Installation Ambient Temperature | Not below 0°C |
| Minimum Bending Radius | Not less than 15 times cable diameter |
| AC Test Voltage | 3.5kV / 5min |
| Flame-retardant Standard | GB/T19666-2005 Grade A, B, C or IEC60332 |
Available Cable Types and Conductor Sizes
| Copper Conductor Type | Aluminum Conductor Type | No. of Cores | Nominal Cross-section |
|---|---|---|---|
| YJV, YJY | YJLV, YJLY | 1 Core | 1.5-800mm² / 2.5-800mm² |
| YJV22, YJV23 | YJLV22, YJLY23 | 1 Core | 10-800mm² |
| YJV, YJY | YJLV, YJLY | 2 Cores | 1.5-300mm² / 2.5-300mm² |
| YJV22, YJV23 | YJLV22, YJLY23 | 2 Cores | 4-300mm² |
| YJV32, YJV33 | YJLV32, YJLY33 | 2 Cores | 10-300mm² |
| YJV, YJY | YJLV, YJLY | 3 Cores | 1.5-400mm² / 2.5-400mm² |
| YJV22, YJV23 | YJLV22, YJLY23 | 3 Cores | 4-400mm² |
| YJV32, YJV33 | YJLV32, YJLY33 | 3 Cores | 10-400mm² |
| YJV, YJY | YJLV, YJLY | 4 Cores | 1.5-400mm² / 2.5-400mm² |
| YJV22, YJV23 | YJLV22, YJLY23 | 4 Cores | 4-400mm² |
| YJV32, YJV33 | YJLV32, YJLY33 | 4 Cores | 10-400mm² |
| YJV, YJY | YJLV, YJLY | 3+1, 5, 4+1, 3+2 | 1.5-400mm² / 4-400mm² |
| YJV32, YJV33 | YJLV32, YJLY33 | 3+1, 5, 4+1, 3+2 | 10-400mm² |
Note: Armoured single core cables are used for DC systems only. For AC systems, non-magnetic armour material should be used, or magnetic isolation should be applied.
Image Description

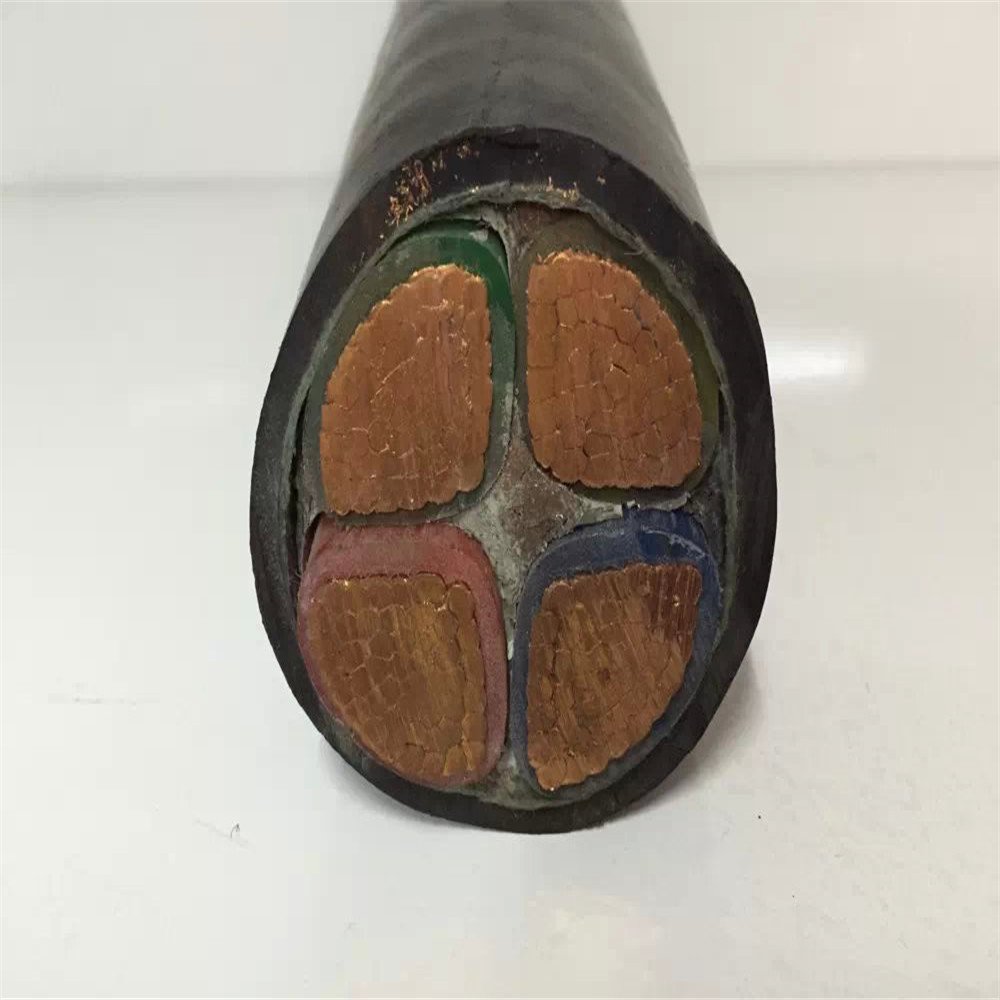

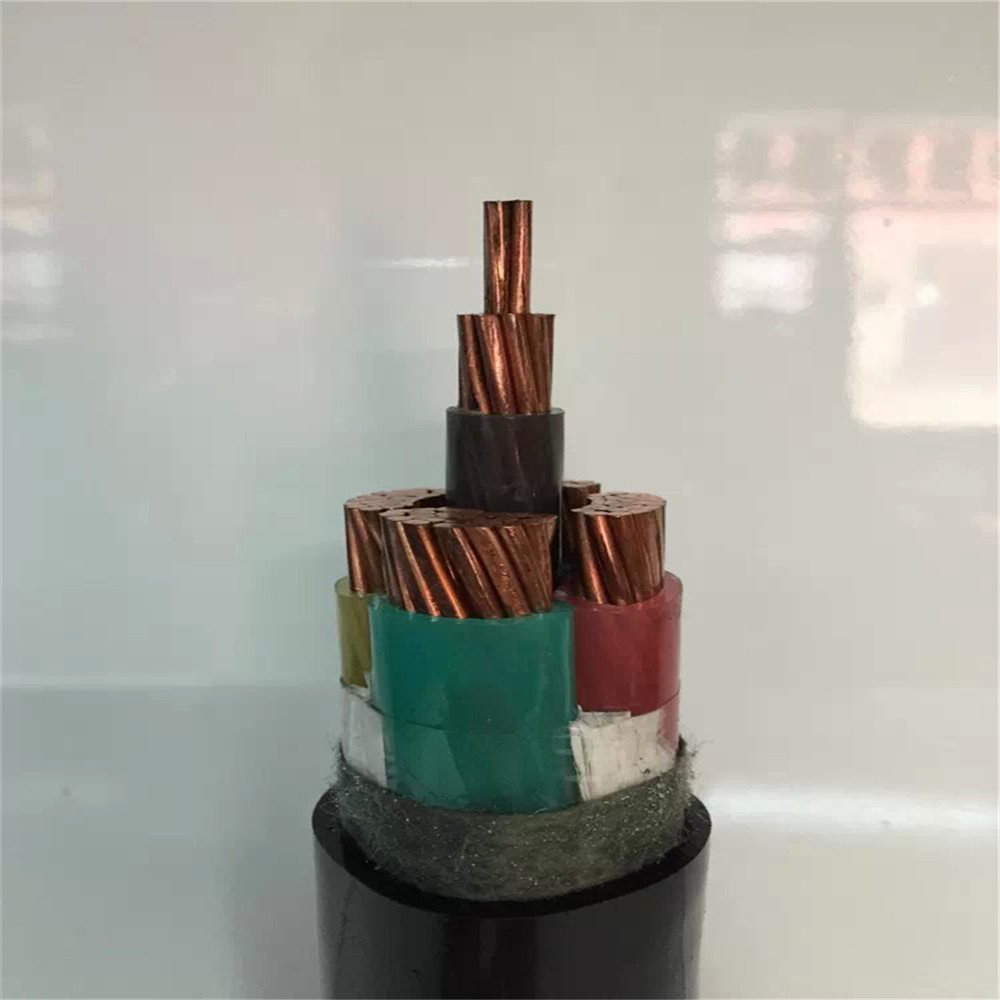

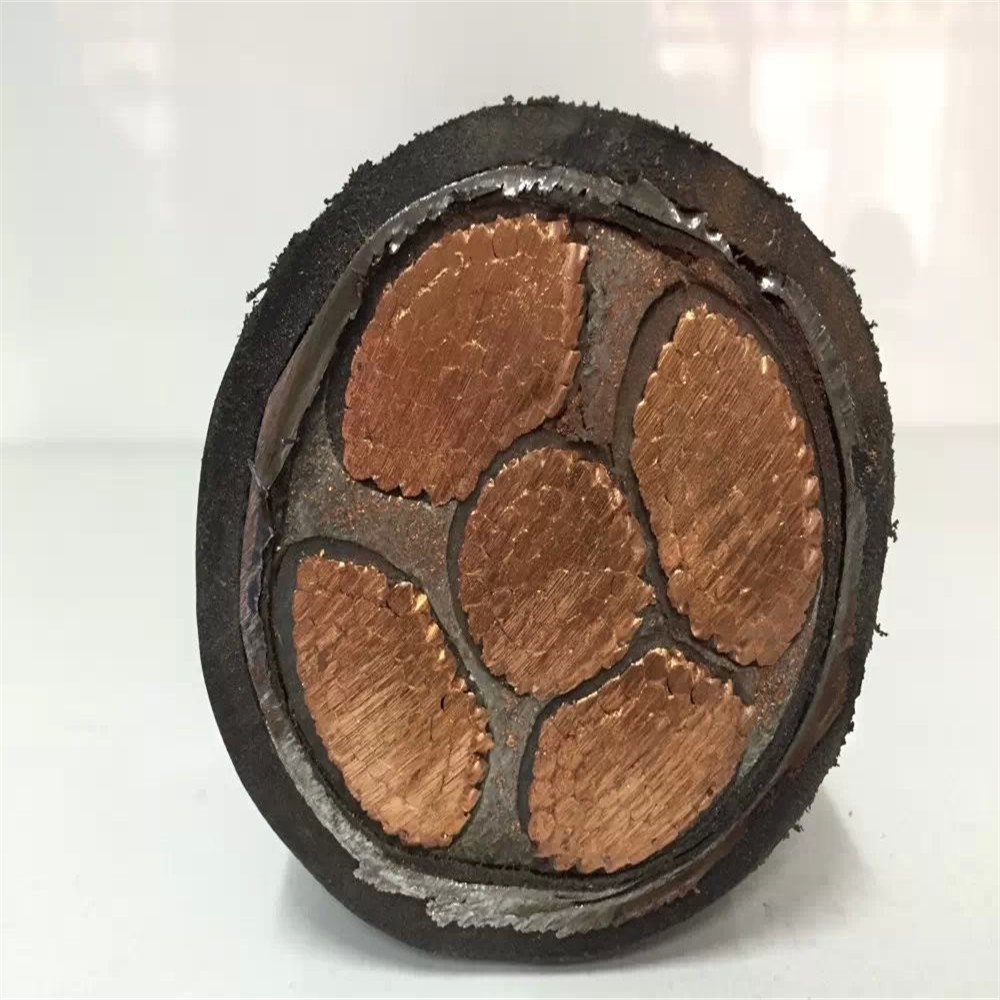

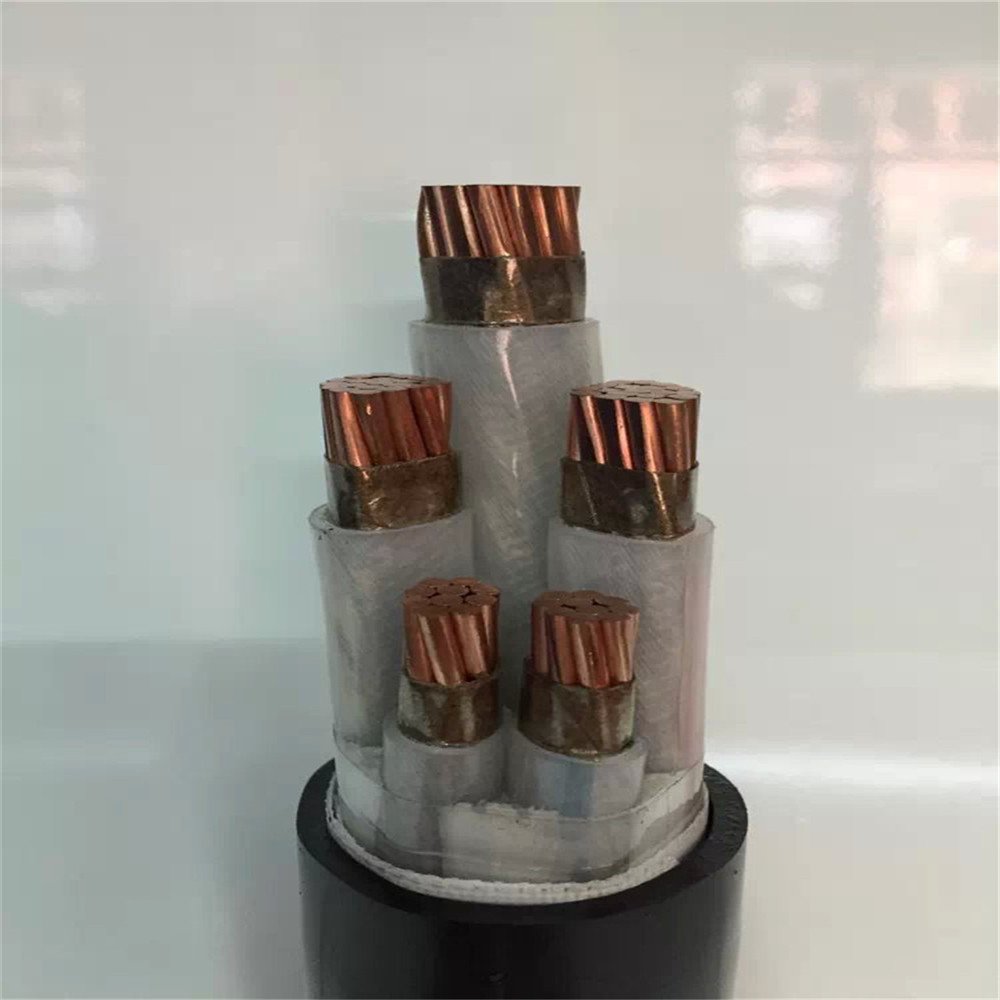

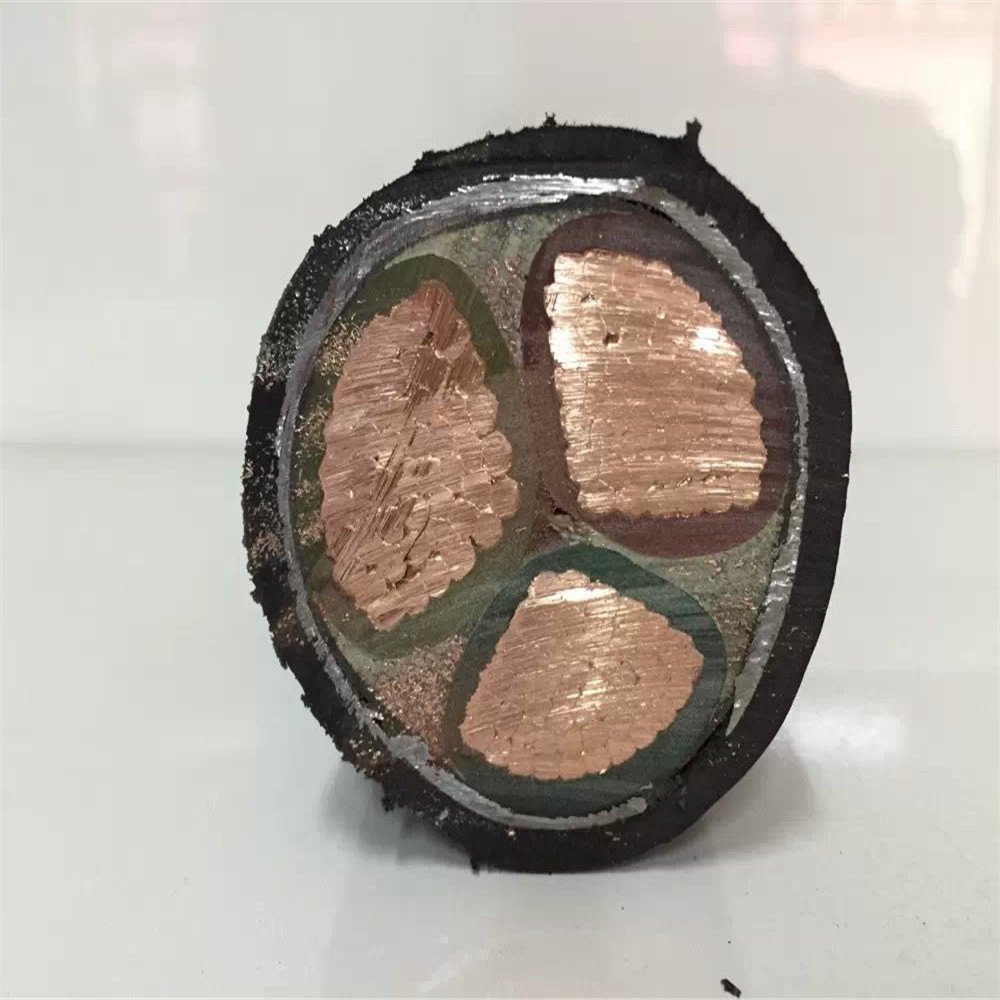

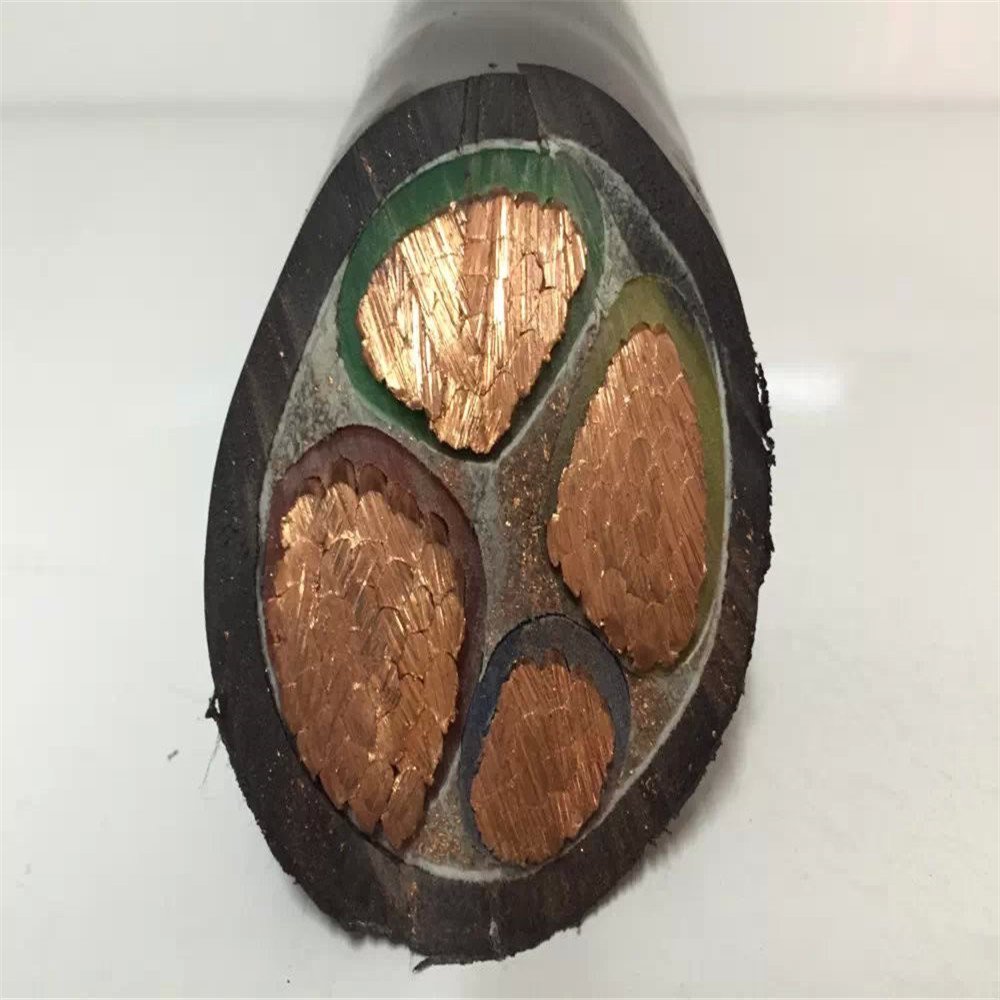

The image shows a copper conductor XLPE/PVC insulated power cable for 0.6/1kV low voltage power transmission and distribution applications.
We can supply customized Copper Conductor XLPE/PVC Insulated Power Cable 0.6/1kV according to your required conductor size, core number, insulation type, sheath material, cable type and standard. Send us your technical requirements to get a fast quotation.
