Aluminum Conductor XLPE Insulated Power Cable 0.6/1kV
Aluminum Conductor XLPE Insulated Power Cable 0.6/1kV is a low voltage unarmoured power cable designed for fixed power distribution networks and industrial installations. With a Class 2 aluminum conductor, XLPE insulation and PVC sheath, this aluminum power cable provides a practical solution for protected cable routes where armour is not required.
Application
This 0.6/1kV aluminum conductor XLPE insulated power cable is suitable for electric power distribution networks, industrial power systems, building power supply, indoor installation, conduit laying, cable trenches and cable tray applications. As an unarmoured power cable, it is recommended for protected fixed installations and should not be used where the cable needs to bear strong external mechanical force.
Structure
- Conductor: Class 2 stranded aluminum conductor
- Insulation: XLPE, cross-linked polyethylene
- Outer Sheath: PVC
- Armour: No armour, unarmoured cable structure
- Rated Voltage: 0.6/1kV
Features
- Low voltage 0.6/1kV aluminum power cable for fixed installation
- Aluminum conductor offers lighter weight and cost-effective power transmission
- XLPE insulation provides good thermal performance and electrical properties
- PVC sheath gives general protection for indoor and protected installation routes
- Unarmoured design supports easier laying in conduit, trench and cable tray systems
- Suitable for power distribution networks and industrial cable installations
Standards / Certifications
- IEC 60502-1
- GB/T 12706-2008
- No additional third-party certification is claimed unless specified by customer requirements
Technical Parameters
| Item | Specification |
|---|---|
| Rated Voltage | 0.6/1kV |
| Conductor | Class 2 stranded aluminum conductor |
| Insulation | XLPE |
| Outer Sheath | PVC |
| Armour | Unarmoured |
| Max. Conductor Operating Temperature | 90°C |
| Short-circuit Temperature | 250°C, 5s max. |
| Minimum Installation Ambient Temperature | 0°C |
| Single Core Bending Radius | Not less than 20 x cable diameter |
| Multi-Core Bending Radius | Not less than 15 x cable diameter |
Common Cable Options
| Item | Available Options |
|---|---|
| Core Number | Single core, 2 core, 3 core, 4 core, 5 core or customized |
| Conductor Material | Aluminum conductor |
| Insulation Material | XLPE |
| Sheath Material | PVC |
| Installation Type | Fixed installation in protected routes |
| Popular Sizes | Customized according to project requirements, such as 4x95mm² |
Picture Description

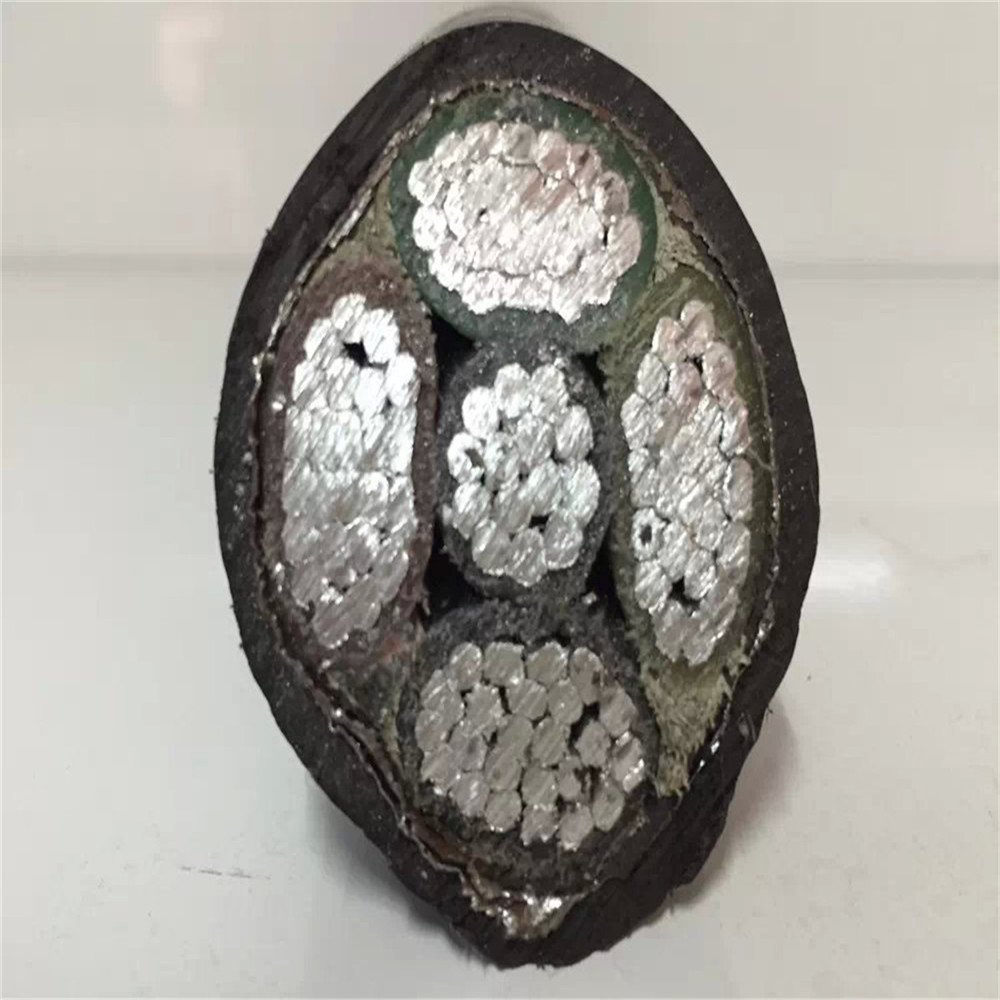

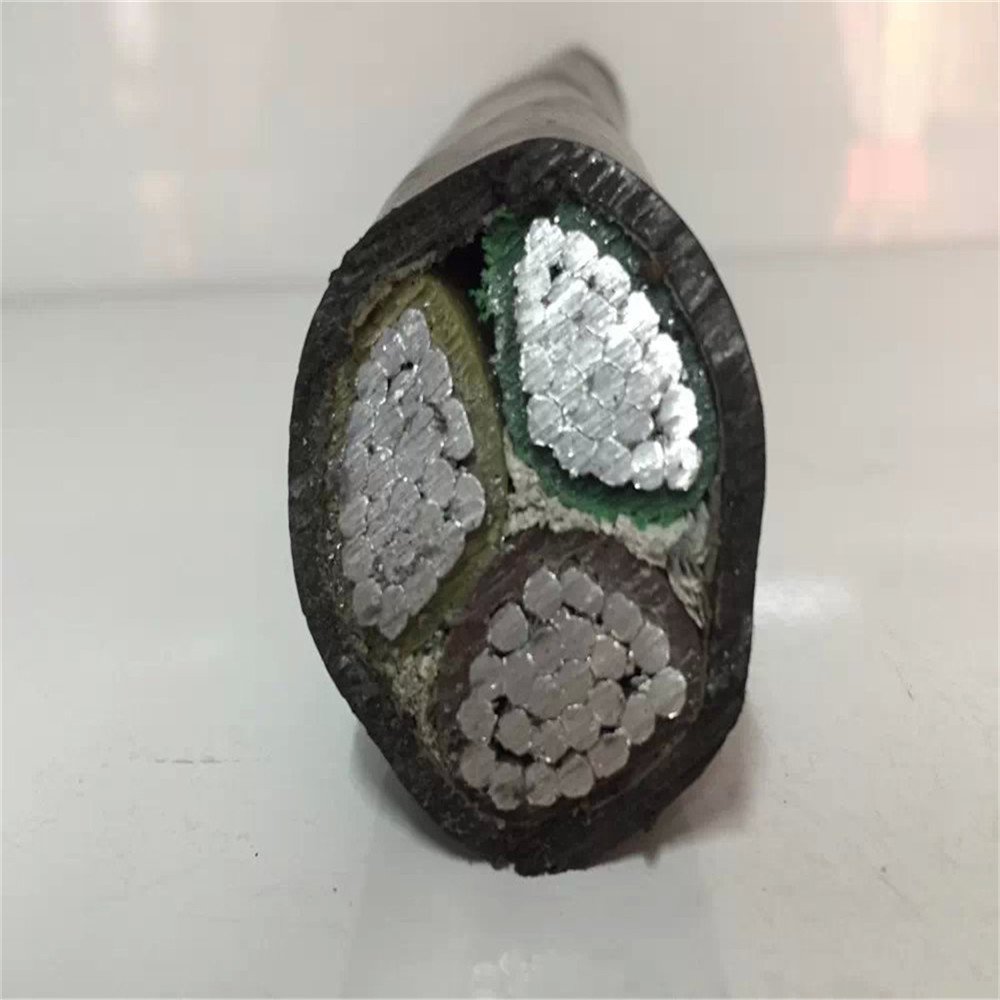

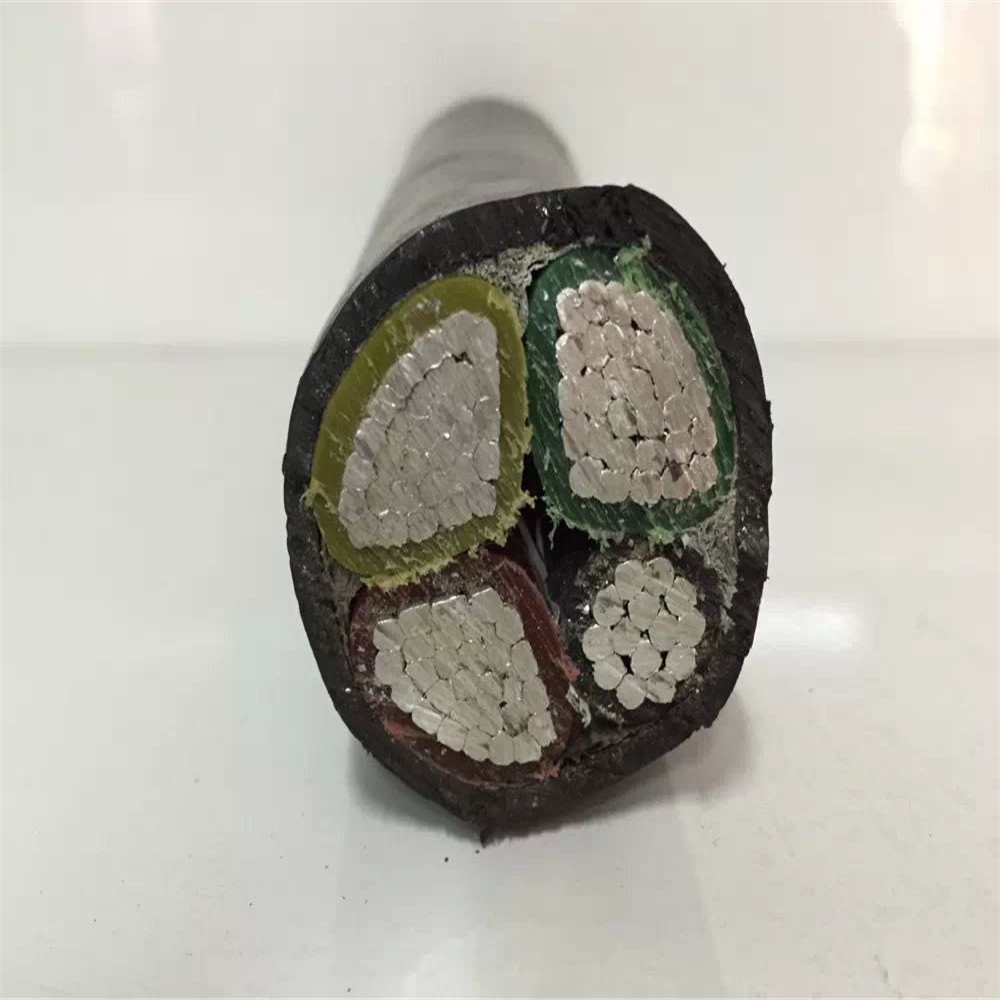

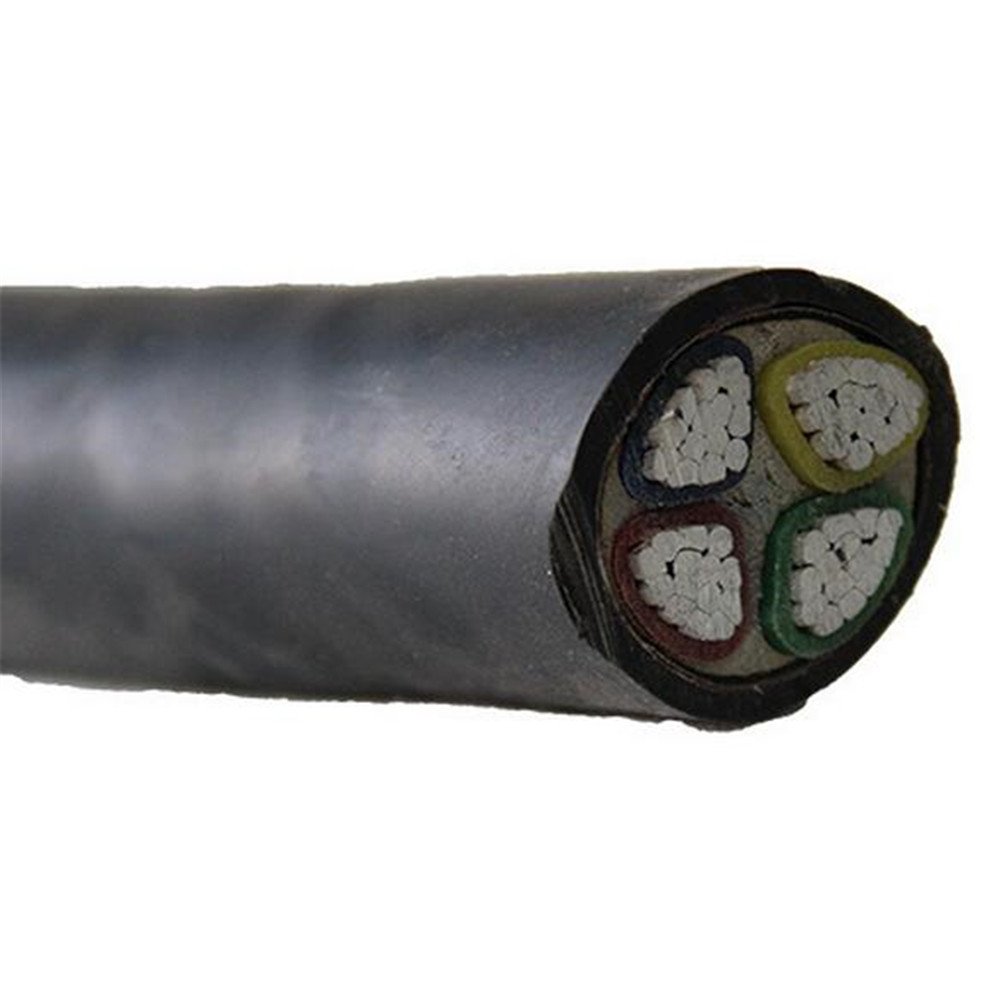

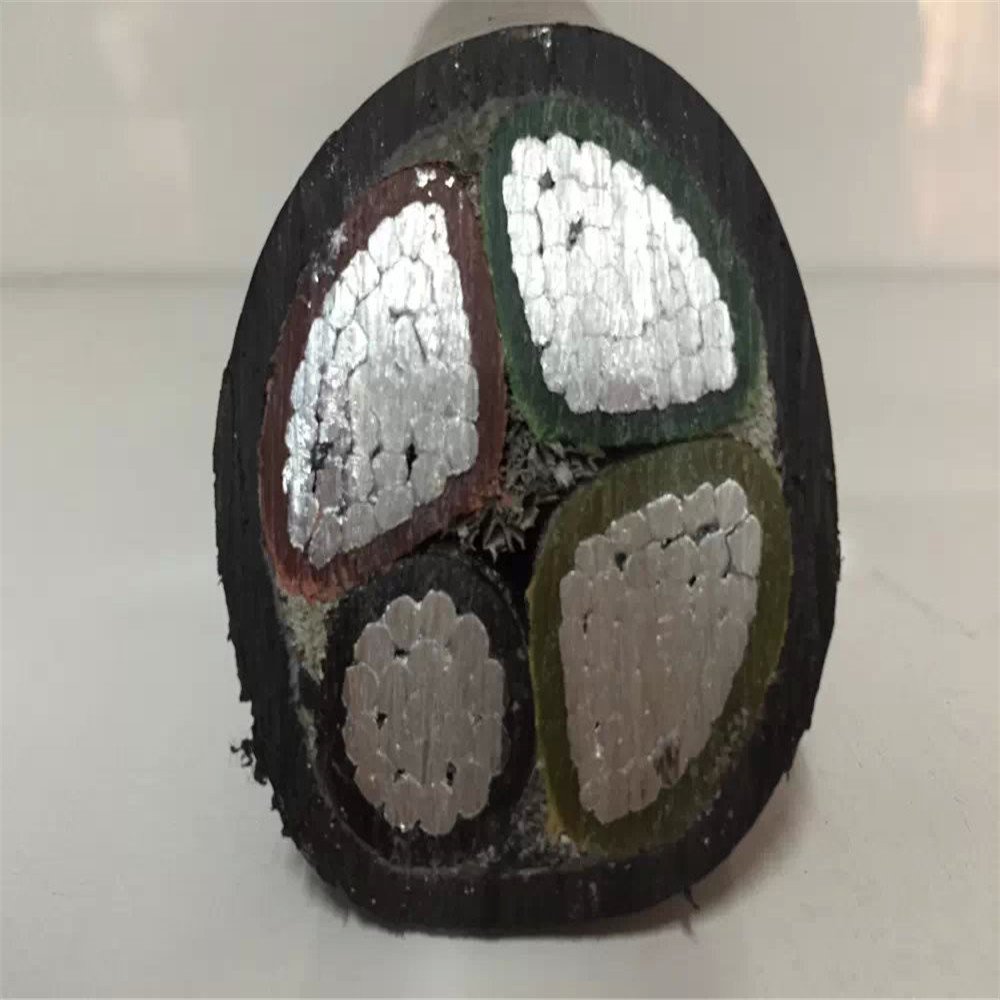

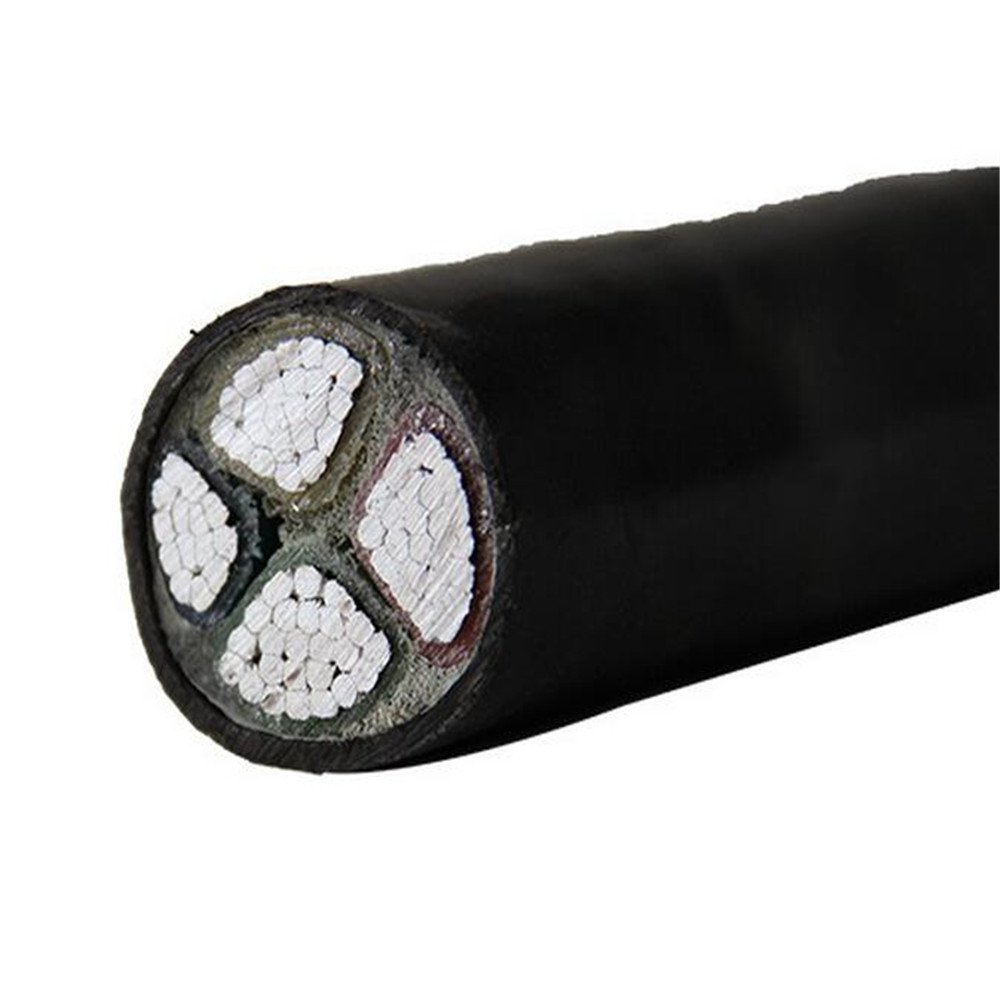

Aluminum conductor XLPE insulated PVC sheathed unarmoured power cable for fixed low voltage power distribution and protected industrial installations.
