Copper Conductor Armoured Power Cable 0.6/1kV
Copper Conductor Armoured Power Cable 0.6/1kV is a low voltage power cable designed for reliable power transmission and distribution in industrial, commercial and infrastructure projects. With copper conductor, XLPE/PVC insulation, SWA or STA armouring and PVC outer sheath, this armoured power cable provides excellent electrical performance, strong mechanical protection and long service life.
Application
This 0.6/1kV armoured power cable is suitable for direct burial, cable trays, ducts, tunnels and cable trenches. It is recommended for installations where cables may be exposed to mechanical damage or external mechanical forces. The cable can also be used for laying in ground along routes with large level differences.
Construction
- Conductor: Solid or stranded copper conductor, Class 2
- Insulation: Cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC)
- Filler: Polypropylene filament with lapped binding tape
- Binder: Binding tape
- Inner Sheath: PVC
- Armour: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)
- Outer Sheath: PVC
Key Features
- Excellent electrical performance and mechanical strength.
- Strong resistance to heat, chemical corrosion and environmental stress.
- XLPE insulated cable supports long-term operating temperature up to 90°C.
- SWA or STA armouring offers reliable protection for direct burial and harsh installation environments.
- Simple cable structure, convenient installation and stable long-term operation.
- Available in flame-retardant, low-smoke low-halogen, low-smoke halogen-free and non-halogen options.
Standards and Certifications
IEC 60502, BS 6346, VDE, AS/NZS, UL, or manufactured according to customer requirements.
Technical Parameters
| Item | Technical Data |
|---|---|
| Rated Voltage | 0.6/1kV |
| Conductor Material | Copper |
| Core Options | 1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 cores and customized options |
| Nominal Section Area | 1.5mm² to 800mm² |
| Insulation | XLPE or PVC |
| Armour Type | SWA or STA |
| Outer Sheath | PVC |
| Sheath Colors | Brown, Black, Grey, Blue or customized |
Common Specification: 4 Core Cu/XLPE/SWA/PVC Power Cable 0.6/1kV
| Cross Section | Approx. OD | Approx. Weight | Current Rating |
|---|---|---|---|
| 4 x 1.5mm² | 12.88mm | 351kg/km | 32A |
| 4 x 2.5mm² | 14.43mm | 429kg/km | 42A |
| 4 x 4mm² | 16.87mm | 538kg/km | 55A |
| 4 x 6mm² | 17.87mm | 670kg/km | 69A |
| 4 x 10mm² | 20.1mm | 998kg/km | 92A |
| 4 x 16mm² | 22.4mm | 1272kg/km | 119A |
| 4 x 25mm² | 27mm | 1940kg/km | 152A |
| 4 x 35mm² | 30.1mm | 2390kg/km | 182A |
| 4 x 50mm² | 31.5mm | 2925kg/km | 217A |
| 4 x 70mm² | 37.4mm | 4200kg/km | 266A |
| 4 x 95mm² | 40.9mm | 5355kg/km | 319A |
| 4 x 120mm² | 46.6mm | 6925kg/km | 363A |
| 4 x 150mm² | 50.2mm | 8200kg/km | 406A |
| 4 x 185mm² | 55.8mm | 9975kg/km | 458A |
| 4 x 240mm² | 62.5mm | 12700kg/km | 529A |
| 4 x 300mm² | 67.4mm | 15275kg/km | 592A |
| 4 x 400mm² | 77mm | 19875kg/km | 667A |
Image Description

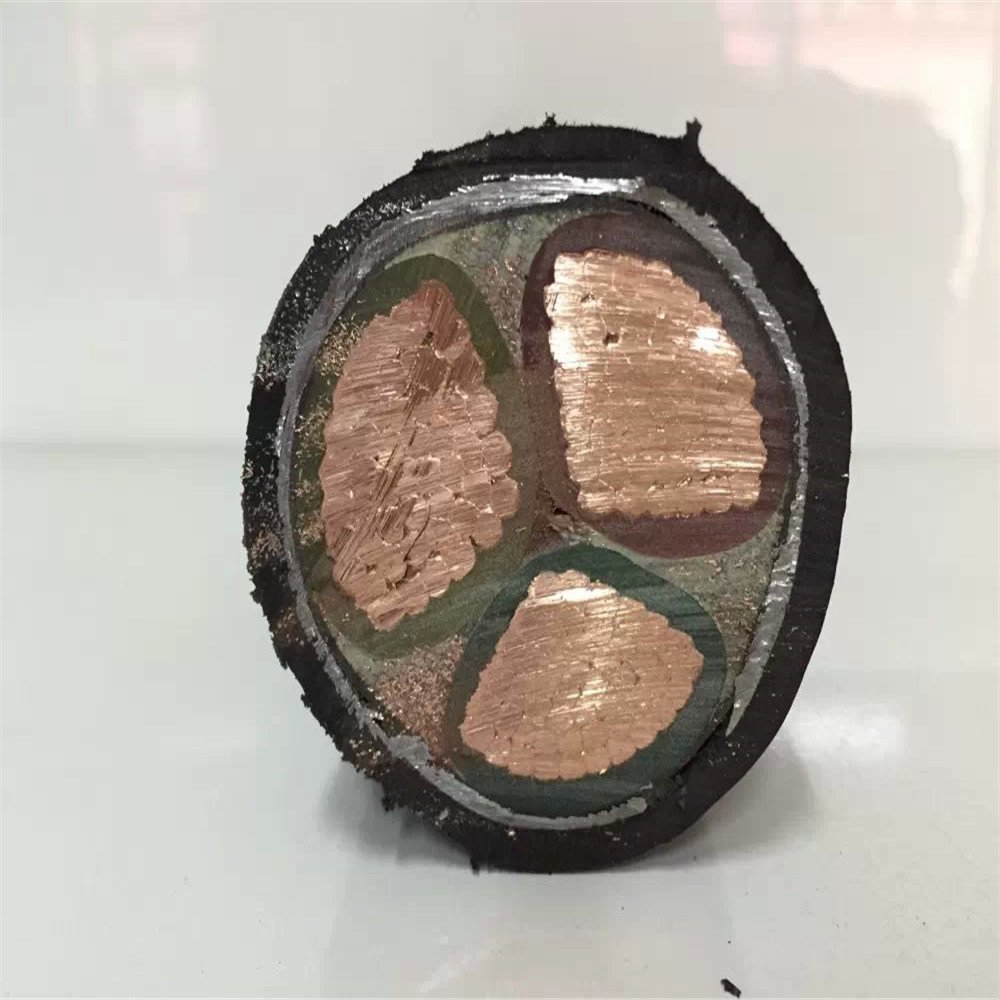

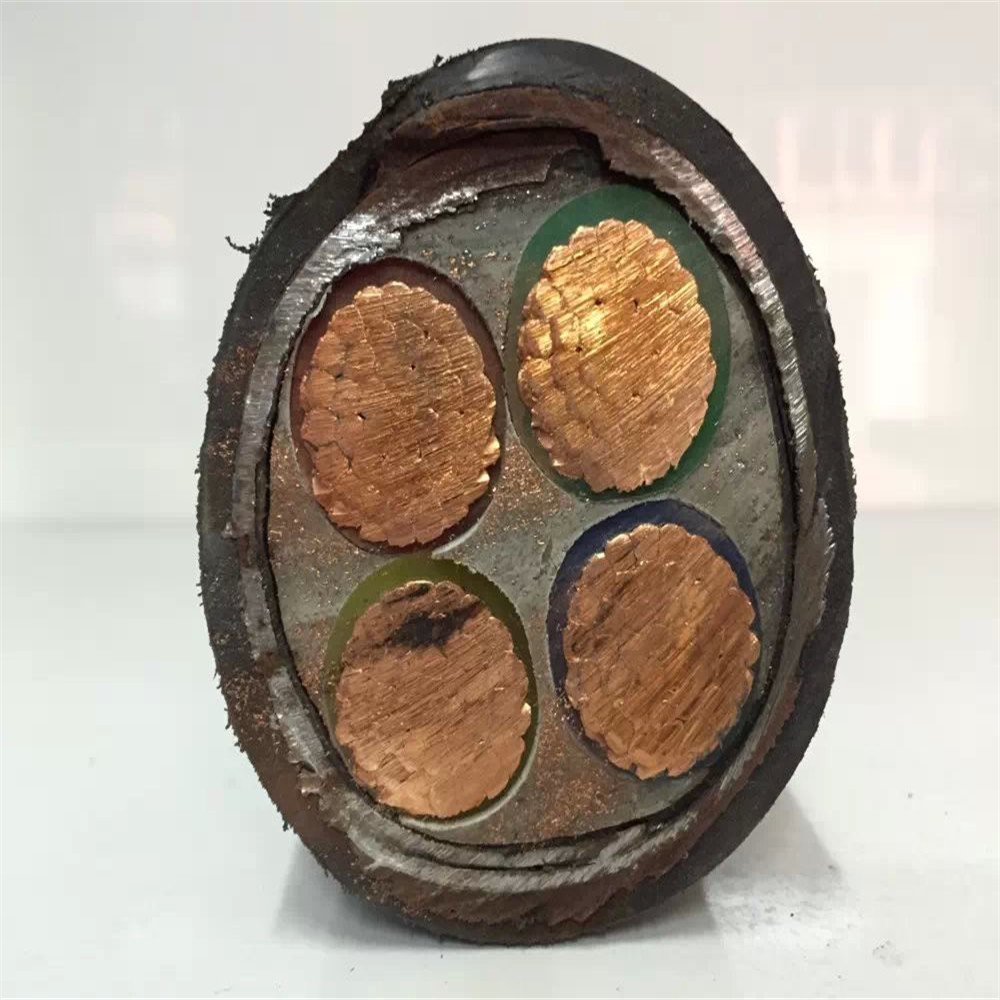

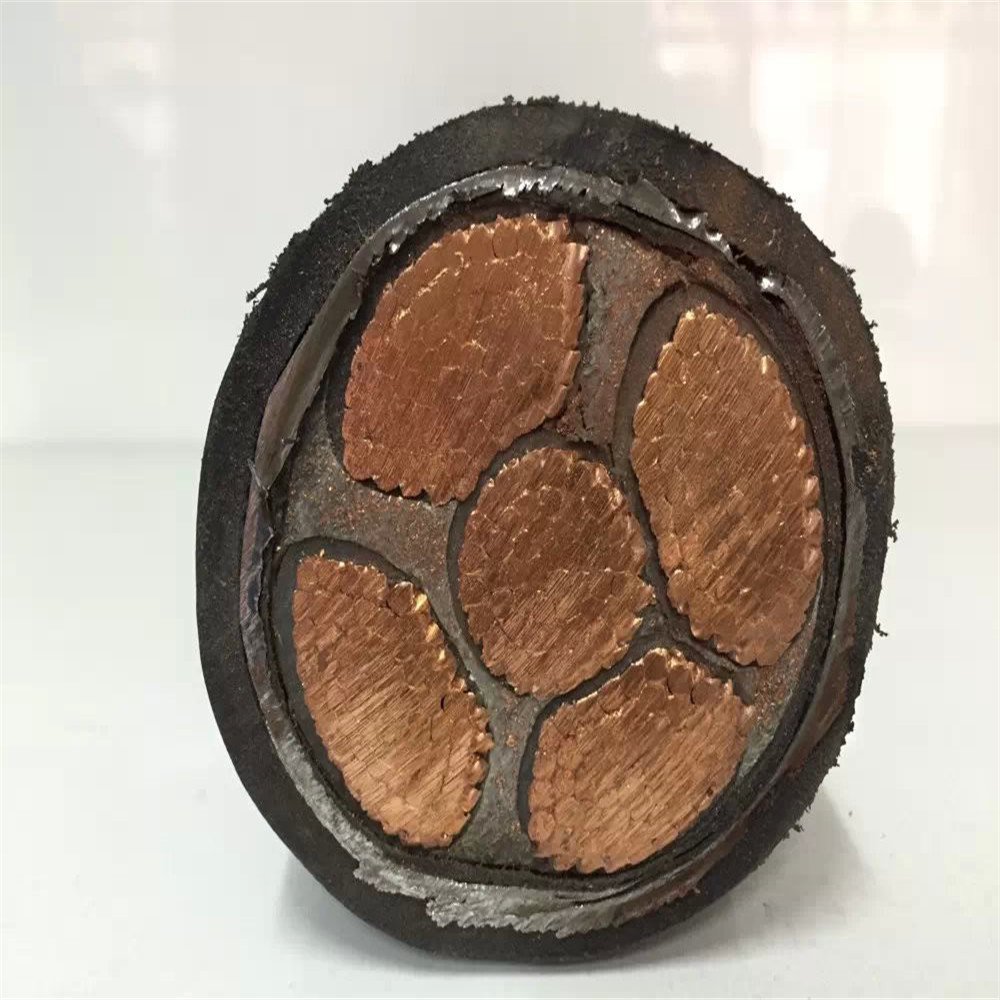

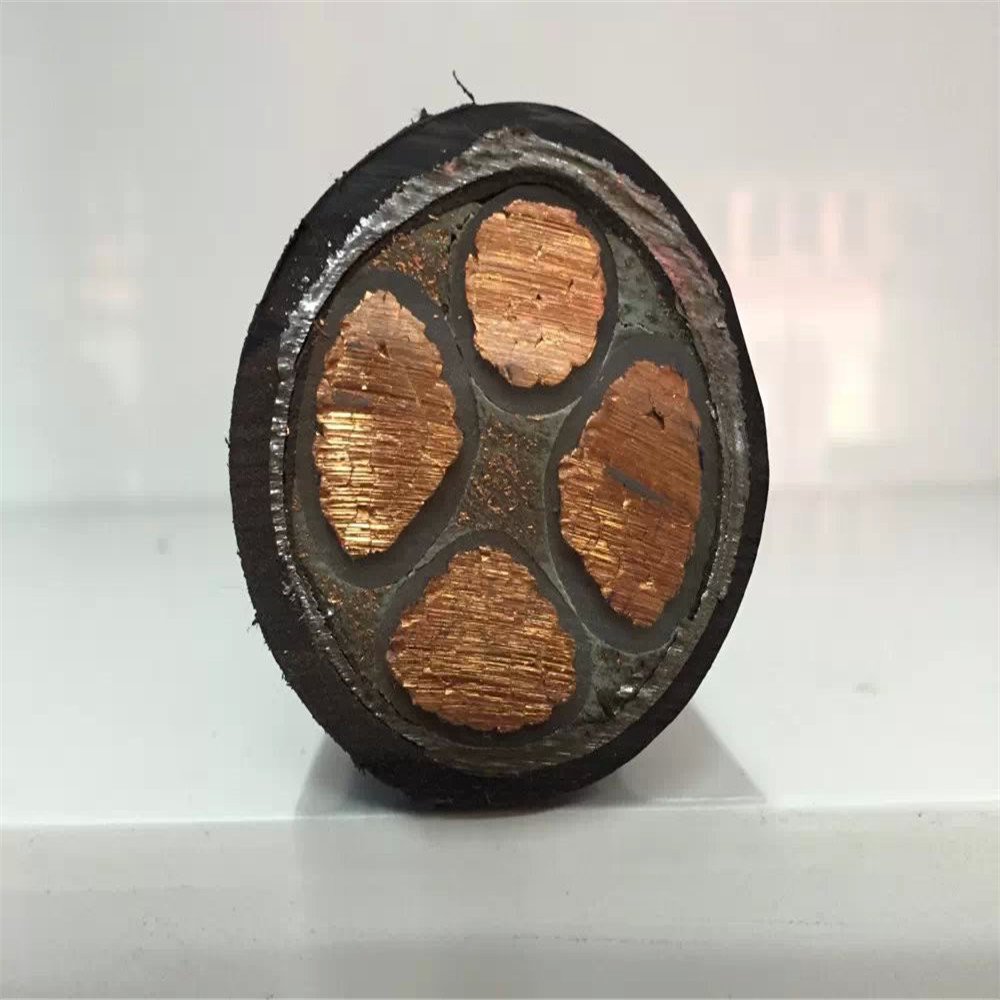

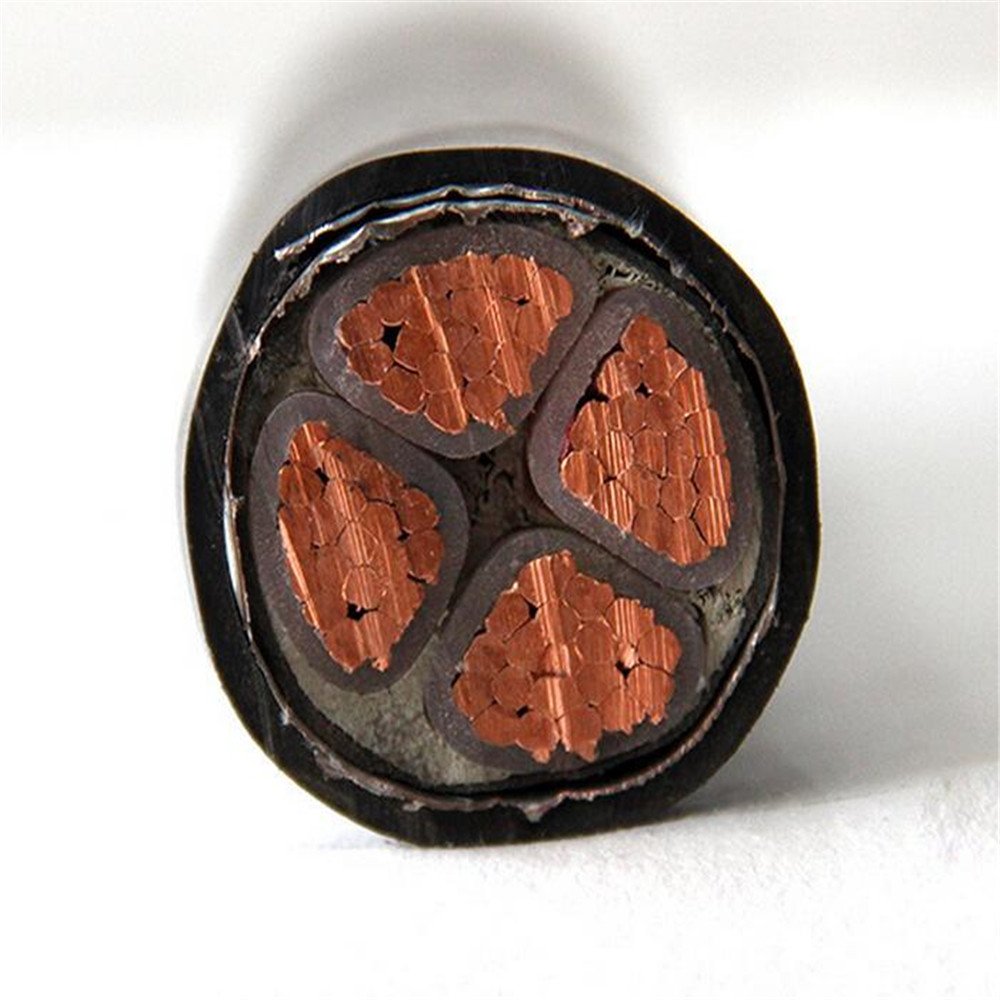

The image shows a copper conductor armoured power cable with XLPE insulation, SWA/STA mechanical protection and PVC outer sheath for 0.6/1kV low voltage power distribution.
We can supply customized copper conductor armoured power cable according to your required voltage, core number, conductor size, sheath color, armour type and international standard. Contact us with your project specification to get a fast quotation.
