Flat Submersible Pump Cable for Borewell Pumps
Flat Submersible Pump Cable is a specialized power cable for submersible pumps used in borewells and deep wells. It is suitable for continuous operation in physically restrictive, wet and harsh installation environments, supplying power to pumps down to depths of 500 meters.
Product Name
Flat Submersible Pump Cable for Borewell Pumps
Product Category
Submersible Pump Cable / Borewell Pump Cable / 1100V PVC Flat Cable
Application
This submersible pump cable is used for borewell pumps, deep well pumps and underwater pumping systems. It is designed for reliable power transmission where moisture, abrasion and limited installation space are key challenges.
Cable Structure
- Conductor: Flexible copper wire or tinned copper wire
- Insulation: PVC
- Outer Sheath: Special PVC, available in black or blue
- Core Identification: 3 core and 4 core options available
- 3 Core Colors: Black, light blue and brown; or red, yellow and blue
- 4 Core Colors: Black, light blue, brown, yellow/green or green/yellow core
Key Features
- Excellent resistance to moisture, abrasion, grease and oil
- Longer flex life for deep well pump operation
- Excellent mechanical and electrical properties
- Flame retardant performance according to IEC 60332-1
- Flat design for easy installation in borewell pump systems
Standards / Certifications
- IEC 60227
- BS 6500
- DIN VDE 0281
- IS 694
- Flame retardant test as per IEC 60332-1
Technical Parameters
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +80°C |
| Nominal Voltage | 1100 V |
| Test Voltage | 3000 V |
| Minimum Bending Radius | 6 x cable diameter |
| Flame Propagation | Flame retardant test as per IEC 60332-1 |
Specification Table
| Nominal Area mm² | Conductor No./mm | Insulation Thickness mm | Nominal Core Dia. mm | Sheath Thickness mm | Overall Thickness mm | Overall Width mm | Current Rating at 40°C Amps |
|---|---|---|---|---|---|---|---|
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.3 | 6 | 15.8 | 14 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.3 | 6.5 | 18 | 18 |
| 4 | 56/0.30 | 1.0 | 4.5 | 1.45 | 7.6 | 21 | 26 |
| 6 | 84/0.30 | 1.0 | 5.3 | 1.5 | 7.9 | 24.3 | 31 |
| 10 | 140/0.30 | 1.0 | 6.5 | 1.8 | 9.9 | 29.7 | 42 |
| 16 | 224/0.30 | 1.0 | 8 | 1.95 | 11.8 | 36 | 57 |
| 25 | 350/0.30 | 1.2 | 10.1 | 2.0 | 14.7 | 45.1 | 72 |
| 35 | 490/0.30 | 1.2 | 11.5 | 2.0 | 16.2 | 50.1 | 90 |
| 50 | 703/0.30 | 1.4 | 13.6 | 2.2 | 18.3 | 58.1 | 115 |
| 70 | 988/0.30 | 1.4 | 15.3 | 2.2 | 20 | 66.5 | 143 |
| 95 | 1349/0.30 | 1.6 | 18 | 2.4 | 23.5 | 77.3 | 165 |
Picture Description

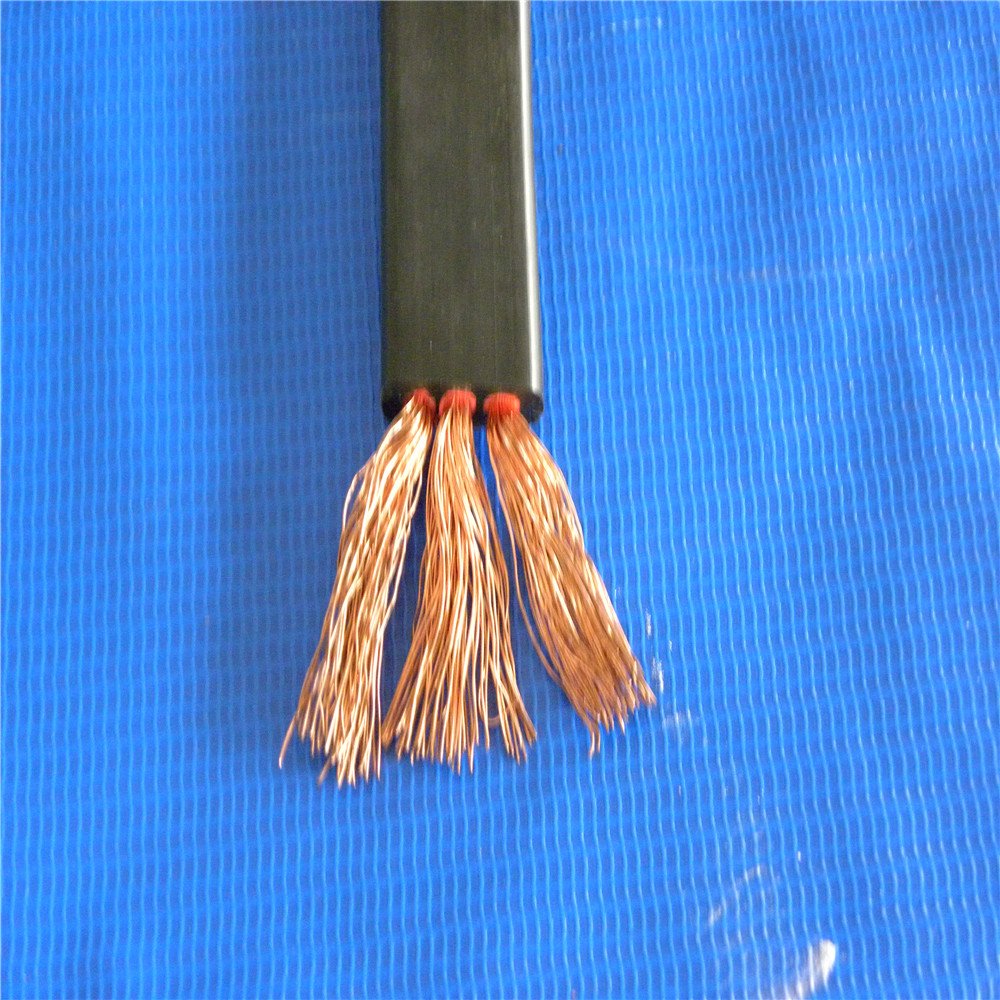

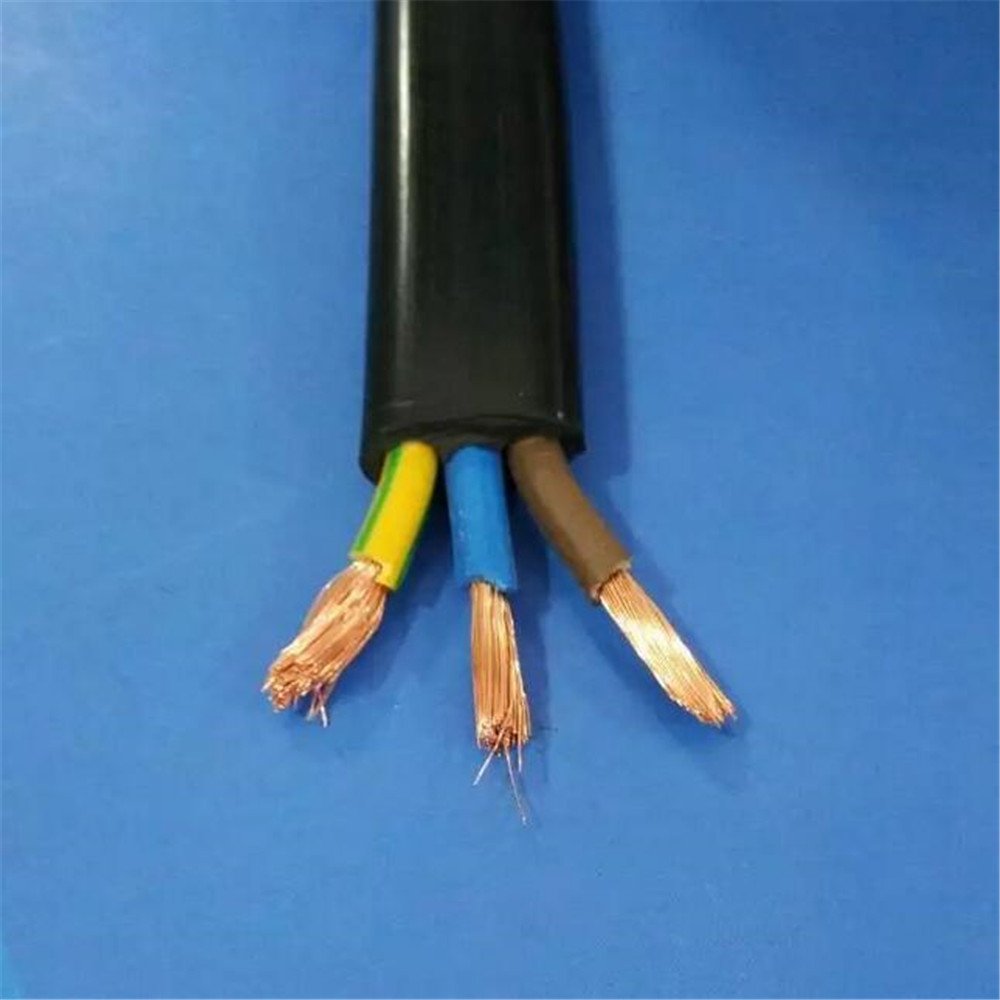

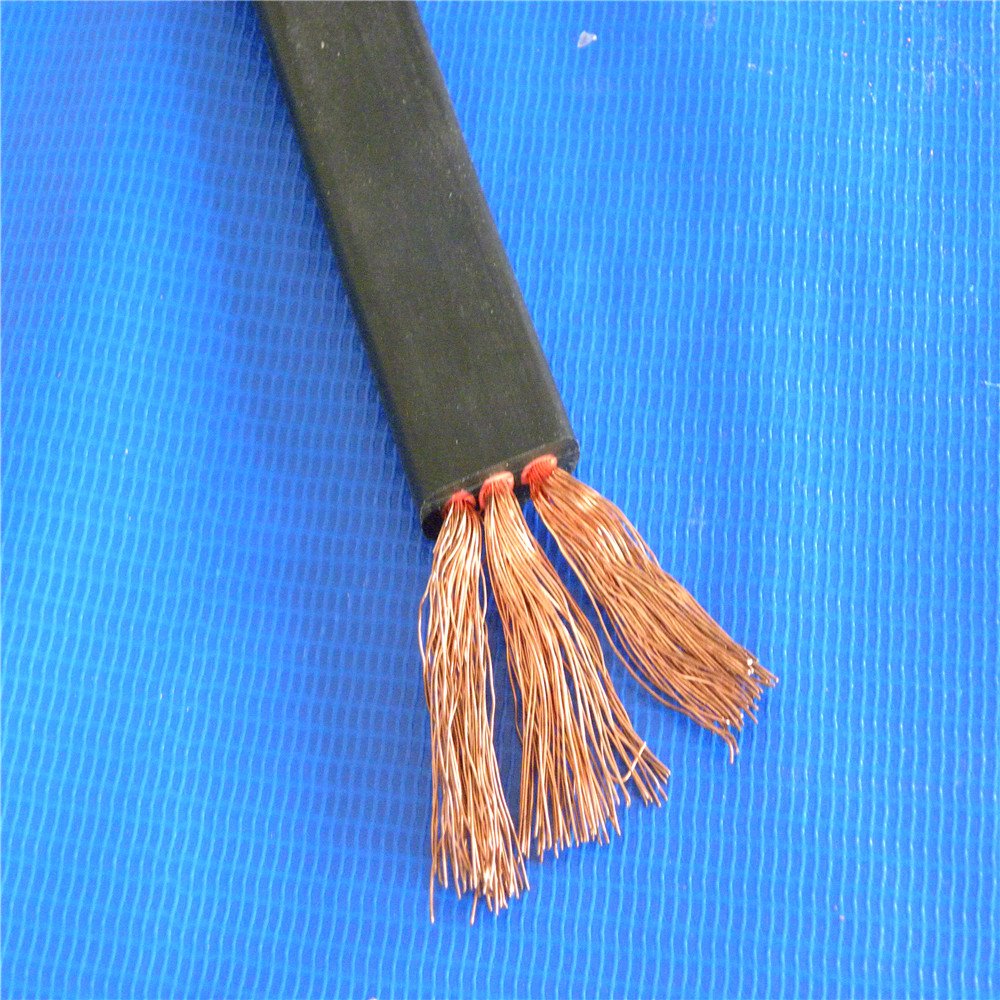

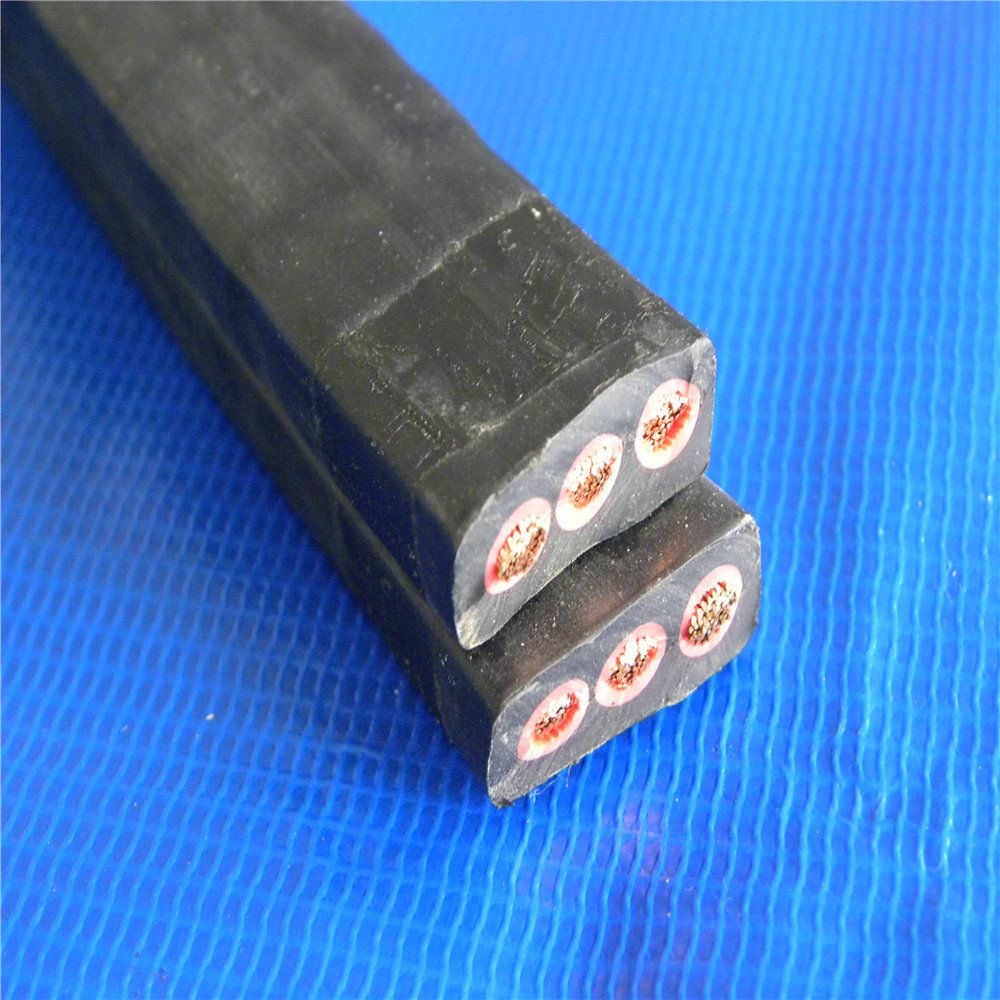

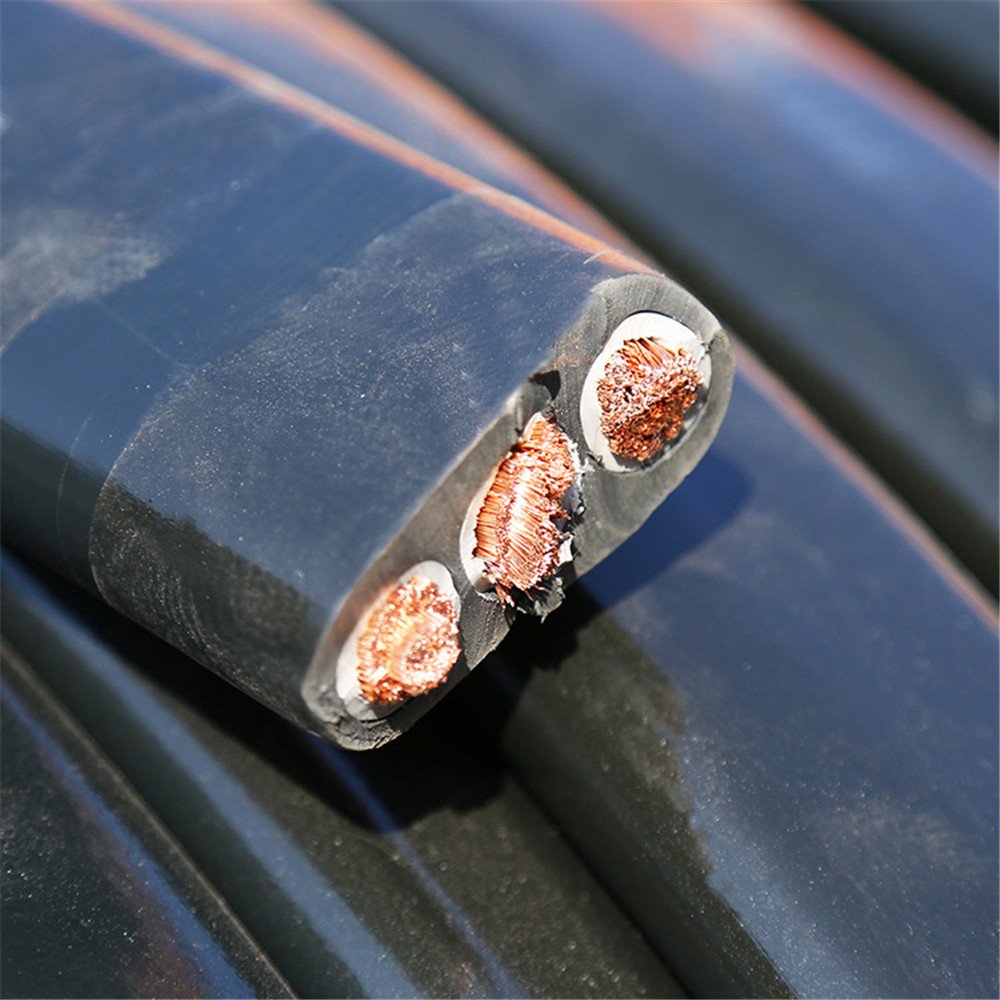

Flat PVC submersible pump cable for borewell pump power supply, available with flexible copper or tinned copper conductor.
Need a flat submersible pump cable for your borewell pump project? Send us your required size, core number, voltage and quantity for a fast quotation.
