PVC Insulated Building Wire
PVC Insulated Building Wire is used for AC 450/750V or below fixed electrical installation. It is widely applied in house wiring, lighting circuits, household electrical appliances, instruments, apparatus and telecommunications equipment. With PVC insulation and copper or aluminum conductor options, this building wire provides stable electrical performance for residential, commercial and general low voltage wiring projects.
Application
This PVC insulated building wire is suitable for fixed installation in AC 450/750V or below power systems. It is commonly used for building wiring, lighting wiring, household electrical appliances, instruments, telecommunications equipment and other low voltage electrical installations.
Construction
- Conductor: Copper conductor or aluminum conductor
- Conductor Type: Solid conductor or stranded conductor
- Insulation: PVC insulation
- Nominal Section: 1.5mm² to 240mm²
- Installation Type: Fixed installation
Features
- Designed for 450/750V, 300/500V and 300/300V rated voltage systems.
- Reliable PVC insulation for fixed building wiring and lighting circuits.
- Long-term conductor working temperature should not exceed 70°C.
- Installation temperature should not be lower than 0°C.
- For cable OD below 25mm, the bending radius should be at least 4 times the cable diameter.
- For cable OD 25mm or above, the bending radius should be at least 6 times the cable diameter.
- Wide conductor size range for different residential, commercial and project wiring needs.
Standards / Certifications
Specific standards and certifications can be supplied according to customer project requirements.
Technical Parameters
| Product Type | PVC insulated building wire |
| Rated Voltage | 450/750V, 300/500V, 300/300V |
| Conductor Material | Copper or aluminum |
| Conductor Structure | Solid or stranded conductor |
| Insulation Material | PVC |
| Long-term Working Temperature | Max. 70°C |
| Installation Temperature | Not lower than 0°C |
| Nominal Section Range | 1.5mm² to 240mm² |
PVC Insulated Building Wire Specifications
| PVC Insulated Building Wire | ||||||
|---|---|---|---|---|---|---|
| Nominal Section (mm²) |
No./Diameter of Core (mm) |
Max Outer Diameter (mm) |
Reference Weight (kg/km) |
Conductor Resistance at 20°C ≤(Ω/km) |
||
| Copper | Aluminum | Aluminum | Copper | |||
| 1.5(A) | 1/1.38 | 3.3 | 20.3 | – | – | 12.1 |
| 1.5(B) | 7/0.52 | 3.5 | 21.6 | – | – | 12.1 |
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
| 2.5(B) | 7/0.68 | 4.2 | 34.8 | – | – | 7.41 |
| 4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.8 | 50.3 | – | – | 4.61 |
| 6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.4 | 71.2 | – | – | 3.08 |
| 10 | 7/1.35 | 7 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 8 | 179 | 78 | 1.91 | 1.15 |
| 25 | 7/2.04 | 10 | 281 | 118 | 1.2 | 0.727 |
| 35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 13 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 15 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.5 | 962 | 385 | 0.32 | 0.193 |
| 120 | 37/2.03 | 19 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 21 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
Image Description

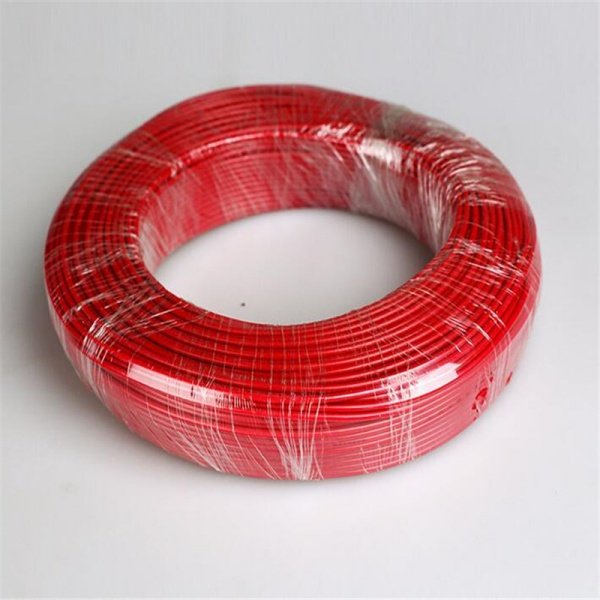

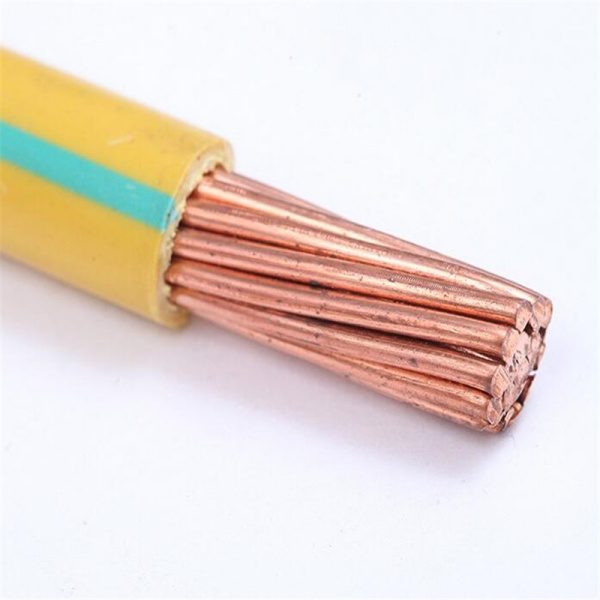

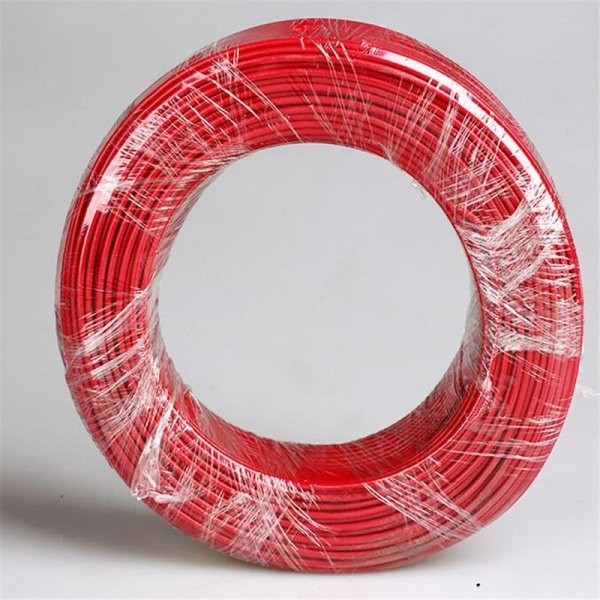

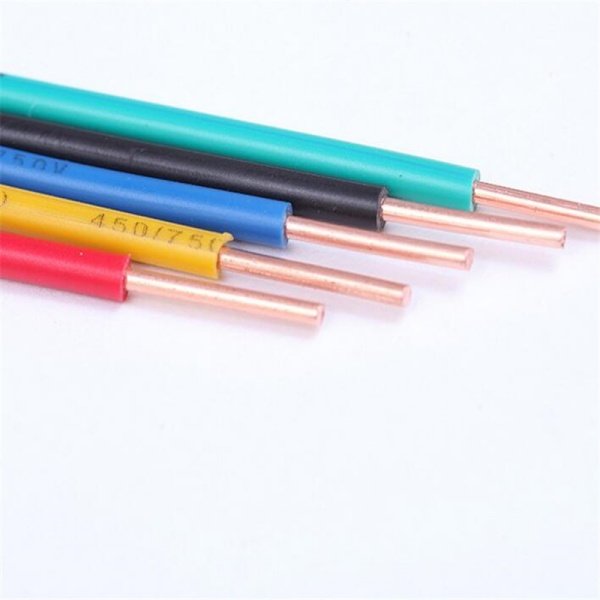

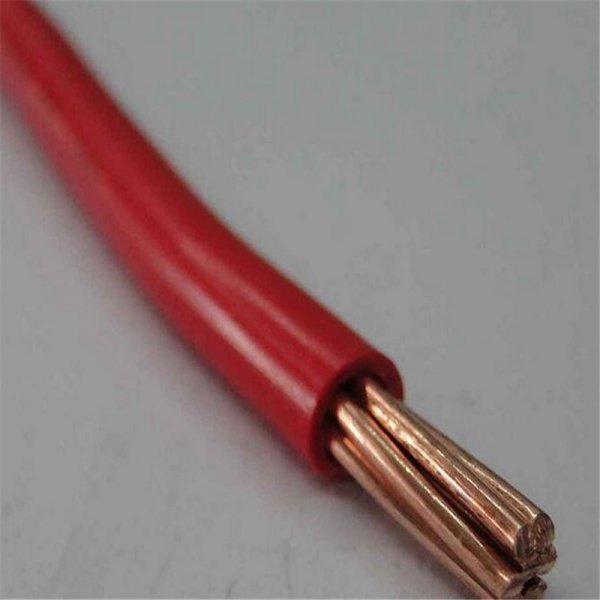

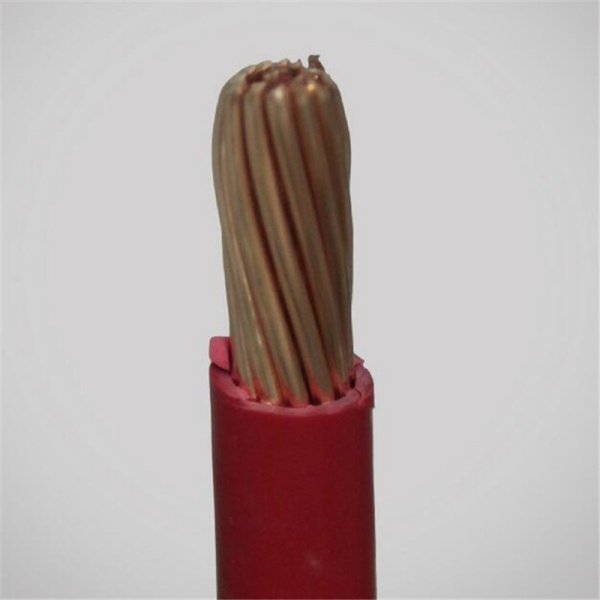

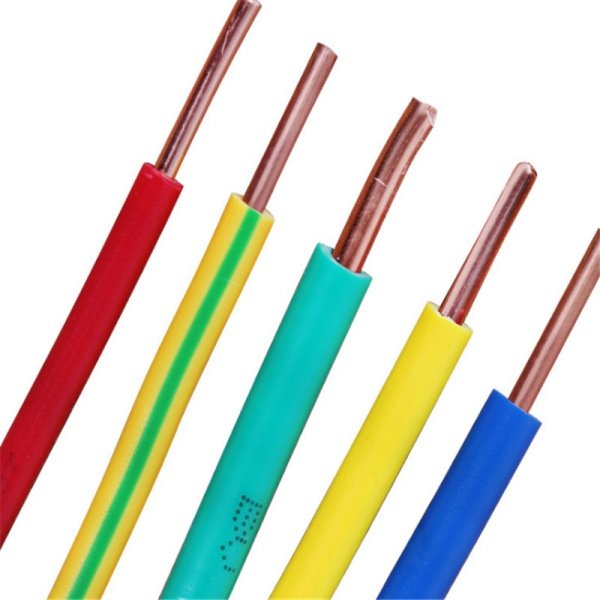

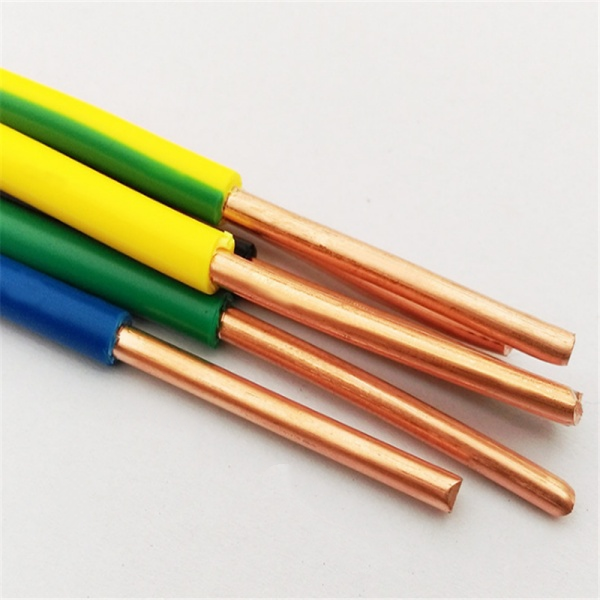

The image shows PVC insulated building wire for fixed electrical installation, house wiring, lighting circuits and low voltage power systems.
We can supply customized PVC Insulated Building Wire according to your required rated voltage, conductor material, nominal section, insulation color, packing length and project standard. Send us your specification to get a fast quotation.
