H07RN-F Submersible Pump Cable 450/750V
H07RN-F Submersible Pump Cable is a flexible heavy duty rubber cable designed for supplying power to submersible pumps in deep wells, borewells and demanding outdoor environments. It is suitable for continuous use down to depths of 500 meters.
Application
This H07RN-F submersible pump cable is used for deep well pumps, borewell pumps and submersible pumping systems. It provides reliable power transmission in wet, abrasive and mechanically demanding installation conditions. A drinking water cable version with EPDM rubber material is also available.
Structure
- Conductor: Finely stranded bare copper flexible conductor
- Insulation: Oil and water resistant thermoplastic rubber
- Sheath: Black heavy duty thermoplastic rubber
- Drinking Water Type: Water resistant EPDM base rubber insulation and sheath
- Core Colours: Red, yellow, blue, green or black
- Alternative Core Colours: Black, light blue, brown, yellow with green line or green with yellow line
Features
- Heavy duty H07RN-F rubber cable for submersible pump applications
- Non toxic cable option for drinking water applications
- Cut, tear and abrasion resistant
- Exceptional long term performance
- Excellent resistance to oils, chemicals, ozone and solvents
- Excellent impact resistance and weather resistance
- Performs and looks like vulcanized rubber
- Excellent electrical properties for stable pump power supply
Standards / Certifications
- CENELEC HD 22.1.S2
- DIN VDE 0282 Part 810
- IEC 245
- CEI 20-19
- BS 6007
- BS 6899
Technical Parameters
| Item | Specification |
|---|---|
| Cable Type | H07RN-F Submersible Pump Cable |
| Rated Voltage | 450/750V |
| Application Depth | Up to 500 meters |
| Conductor | Finely stranded bare copper flexible conductor |
| Insulation | Oil and water resistant thermoplastic rubber |
| Sheath | Black heavy duty thermoplastic rubber |
| Drinking Water Type | EPDM base rubber insulation and sheath |
Specification Data – 3 Core H07RN-F Submersible Pump Cable
| Spec mm² | Copper Content | Min Outer Diameter mm | Max Outer Diameter mm | Net Weight kg/km |
|---|---|---|---|---|
| 3 x 1.5 | 43 | 9.6 | 12.5 | 150 |
| 3 x 2.5 | 72 | 11.5 | 14.5 | 220 |
| 3 x 4 | 115 | 13 | 16 | 340 |
| 3 x 6 | 173 | 14.5 | 20 | 480 |
| 3 x 10 | 288 | 20 | 25.5 | 750 |
| 3 x 16 | 461 | 22.5 | 29.5 | 1,100 |
| 3 x 25 | 720 | 26.5 | 34 | 1,450 |
| 3 x 35 | 1008 | 29.5 | 38 | 2,100 |
| 3 x 50 | 1440 | 34.5 | 44 | 2,800 |
| 3 x 70 | 2016 | 39 | 49.5 | 3,800 |
| 3 x 95 | 2736 | 44 | 54.6 | 4,600 |
| 3 x 120 | 3456 | 47.5 | 59 | 5,400 |
Specification Data – 4 Core and 5 Core H07RN-F Submersible Pump Cable
| Spec mm² | Copper Content | Min Outer Diameter mm | Max Outer Diameter mm | Net Weight kg/km |
|---|---|---|---|---|
| 4 x 1.5 | 58 | 10.5 | 13.5 | 190 |
| 4 x 2.5 | 96 | 12.5 | 15.5 | 280 |
| 4 x 4 | 154 | 14.5 | 18 | 390 |
| 4 x 6 | 230 | 16.5 | 22 | 520 |
| 4 x 10 | 384 | 22.5 | 24.5 | 950 |
| 4 x 16 | 614 | 26.5 | 28.5 | 1,400 |
| 4 x 25 | 960 | 32 | 34 | 1,950 |
| 4 x 35 | 1344 | 33 | 42.5 | 2,700 |
| 4 x 50 | 1920 | 38 | 48.5 | 3,600 |
| 4 x 70 | 2688 | 43 | 54.5 | 4,900 |
| 4 x 95 | 3648 | 50 | 60.5 | 6,200 |
| 4 x 120 | 4608 | 53 | 65.5 | 7,200 |
| 5 x 1.5 | 72 | 11.5 | 15 | 230 |
| 5 x 2.5 | 120 | 13.5 | 17 | 340 |
| 5 x 4 | 192 | 16 | 19.5 | 470 |
| 5 x 6 | 288 | 18 | 24.5 | 640 |
| 5 x 10 | 480 | 24 | 30.5 | 1,150 |
| 5 x 16 | 768 | 27 | 35.5 | 1,700 |
Picture Description

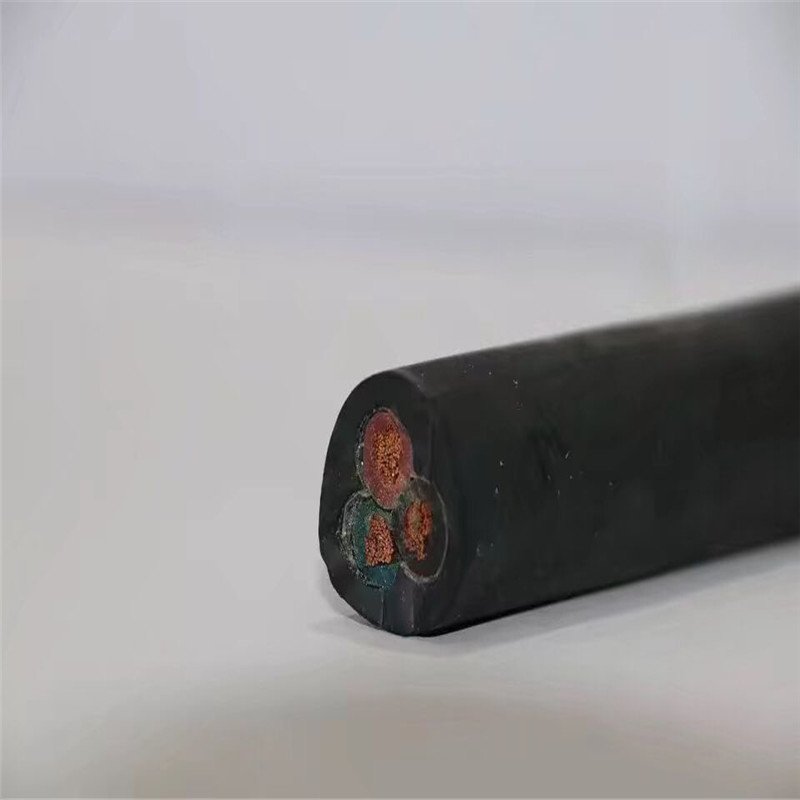

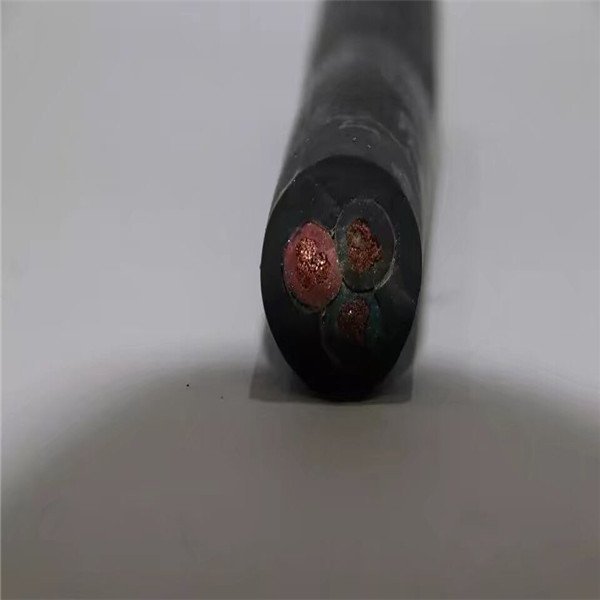

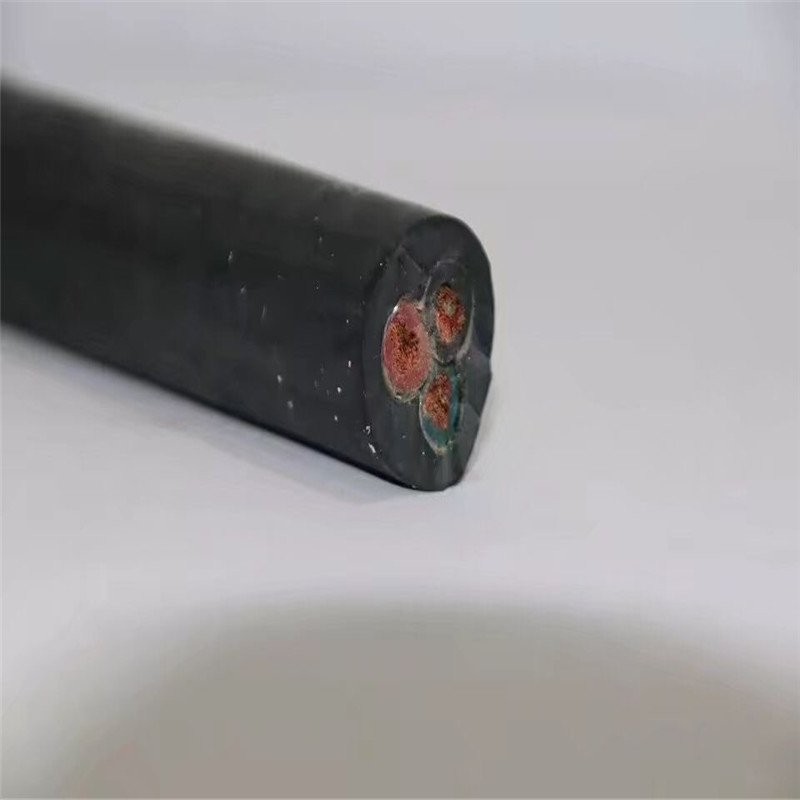

H07RN-F submersible pump cable with flexible copper conductor, rubber insulation and heavy duty black rubber sheath for deep well pump power supply.
Looking for a reliable H07RN-F submersible pump cable for your deep well or borewell pump project? Send us your required core number, cable size, voltage and quantity, and our team will provide a quotation quickly.
