2 Core EV High Voltage Shielded Cable

2 Core EV High Voltage Shielded Cable for electric vehicles and new energy vehicle power systems.

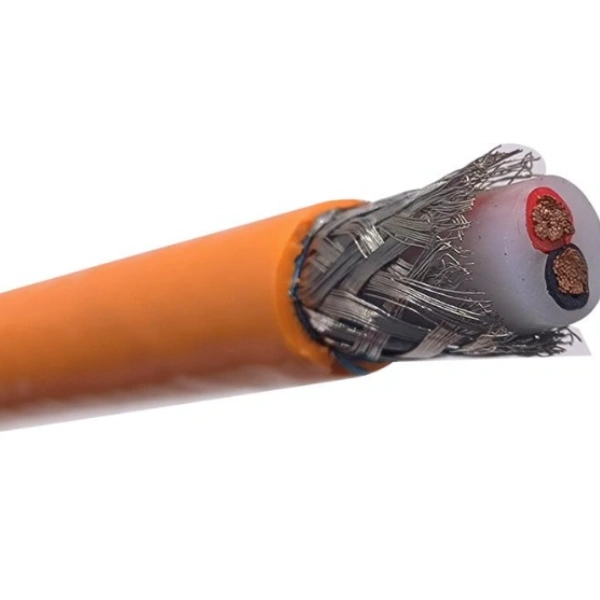

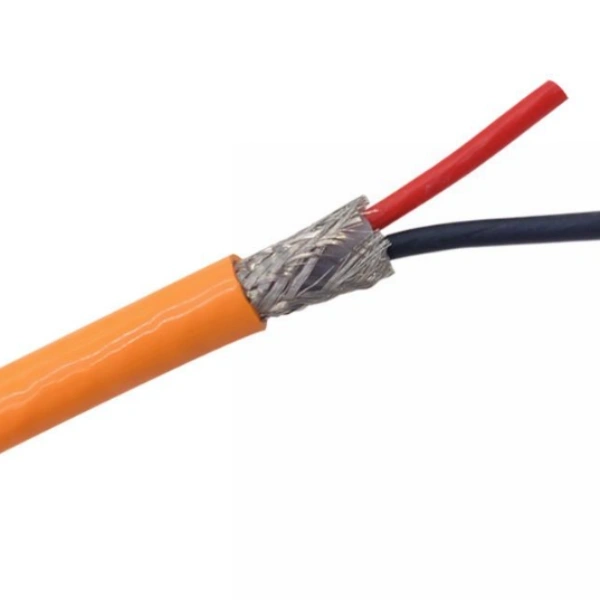

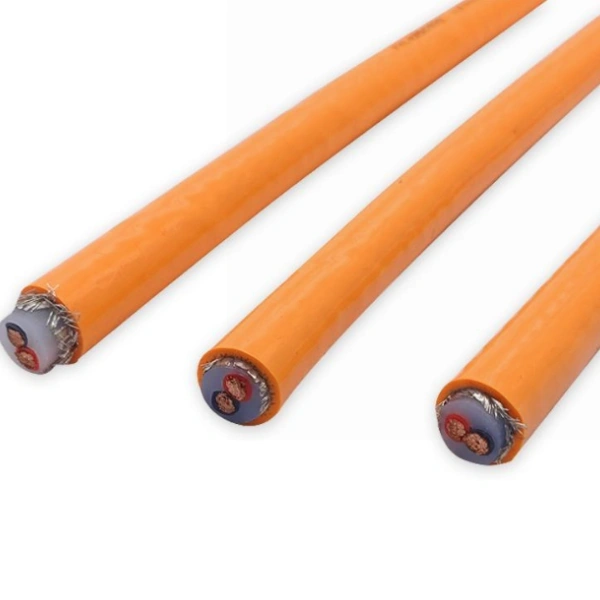

Two-core copper conductor design with orange outer jacket for EV high voltage applications.
Braided shielding helps reduce electromagnetic interference and improve power stability.
Suitable for EV battery packs, PDU, motor controllers and high voltage DC systems.
Custom conductor size, cable length, voltage rating and shielding structure are available.

Product Name	2 Core EV High Voltage Shielded Cable
Conductor Material	Bare Copper / Tinned Copper
Core Structure	2 Core
Insulation Material	XLPE / XLPO
Shielding Type	Braided Shield / Aluminum Foil Shielding
Outer Sheath	XLPE / XLPO or Customized Material
Jacket Color	Orange
Rated Voltage	AC 600V / DC 900V, 1000V AC / 1500V DC Available
Rated Temperature	-40°C to 125°C
Minimum Bending Radius	5D for OD ≤ 20mm; 6D for OD > 20mm
Application	EV Battery System, PDU, Motor Controller, High Voltage DC Circuit
Customization	Conductor Size, Cable Length, Voltage Rating, Shielding Structure and Jacket Material

Cable Size	Cores	Max. Conductor Resistance at 20°C	Reference Current	Reference Outer Diameter
1.5 mm²	2 Core	12.7 mΩ/m	13 A	8.2 mm
2.5 mm²	2 Core	7.6 mΩ/m	18 A	9.6 mm
4 mm²	2 Core	4.71 mΩ/m	26 A	11.0 mm
6 mm²	2 Core	3.14 mΩ/m	33 A	12.0 mm

2 Core EV High Voltage Shielded Cable
