PVC Insulated Flexible Wire
PVC Insulated Flexible Wire is a single core PVC insulated electric wire made with plain annealed copper conductor. It is designed for general purpose wiring, building wire, power circuits, lighting wiring and control wire connections to electrical appliances. This single core flexible wire is suitable for use in conduit and fixed protected installation.
Application
This PVC insulated flexible wire is used as building wire for power, lighting and control wiring. It is suitable for electrical appliances, conduit wiring, fixed protected installation, distribution boards, control cabinets and general low voltage electrical wiring systems.
Construction
- Conductor: Class 1 or Class 2 plain annealed copper wire
- Conductor Type: Solid or stranded conductor
- Insulation: PVC insulation
- Core: Single core
- Jacket: Without jacket
- Color: Black, brown, grey, blue, green/yellow or customized
- Packing: 100m/roll or customized length
Features
- Single core structure for simple and efficient fixed wiring installation.
- Plain annealed copper conductor provides stable conductivity.
- Solid or stranded conductor options for different installation requirements.
- Standard maximum operating temperature: 70°C.
- 90°C and 105°C temperature ratings can be supplied upon request.
- Flame-retardant, fire-resistant and other special properties are available.
- OEM service and customized color, packing and specification options are available.
Standards / Certifications
Standards: IEC 60227, BS 6004, VDE 0281, GB/T 5023, JB/T 8734. Certifications available: ISO9001, ISO14001, OHSMS18001, CE, CB, CCC, SAA and others upon request.
Technical Parameters
| Product Type | PVC insulated flexible wire |
| Rated Voltage | 300/500V, 450/750V |
| Conductor Material | Plain annealed copper wire |
| Conductor Class | Class 1 / Class 2 |
| Conductor Structure | Solid or stranded |
| Insulation Material | PVC |
| Core Number | Single core |
| Nominal Cross Section Range | 0.75-240mm², customized sizes available |
| Maximum Operating Temperature | 70°C, 90°C or 105°C upon request |
| Packing | 100m/roll or customized |
PVC Insulated Flexible Wire Specifications
| PVC Insulated Flexible Wire | |||||
|---|---|---|---|---|---|
| Nominal Section Area (mm²) |
No./Diameter of Core (mm) |
Insulation Thickness (mm) |
Max Outer Diameter (mm) |
Reference Weight (kg/km) |
Conductor Resistance at 20°C ≤(Ω/km) |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
| 10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
| 10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
| 16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
| 25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
| 35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
Image Description

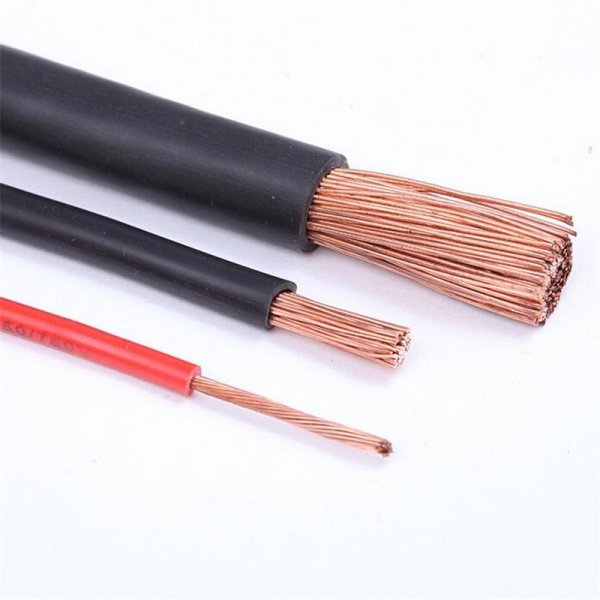

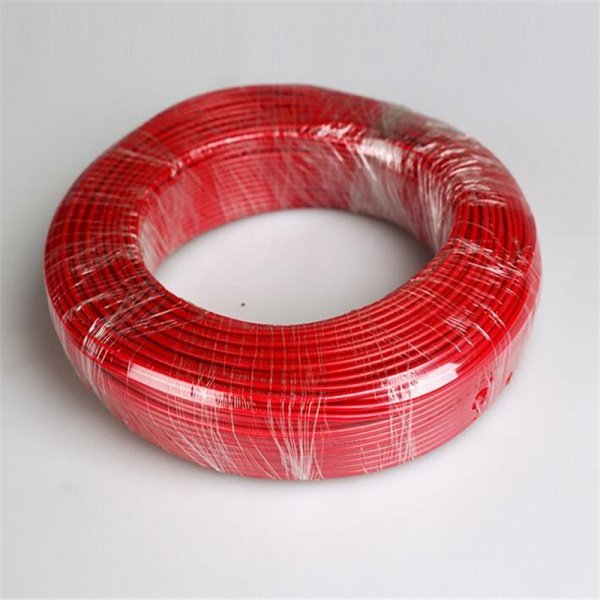

The image shows single core PVC insulated flexible wire with plain annealed copper conductor for building wiring, conduit wiring, lighting circuits and fixed protected installation.
We can supply customized PVC Insulated Flexible Wire according to your required voltage, conductor size, conductor structure, insulation color, flame-retardant property, packing length and certification requirements. Send us your specification to get a fast quotation.
