Custom Length Solar Cable with MC4 Connector
Custom Length Solar Cable with MC4 Connector is suitable for solar panel extension, PV system wiring, DC circuits and inverter connection. The cable is made with copper conductor to reduce resistance and minimize power loss, while the weatherproof insulation provides reliable protection against UV, moisture, heat, cold, oil, abrasion and outdoor weathering.
This custom length solar cable with MC4 connector allows customers to choose suitable cable length, conductor size and connector configuration according to different solar power system requirements. Red cable with male connector is commonly used for positive polarity, and black cable with female connector is commonly used for negative polarity. Please confirm polarity before final connection.
Product Details
| Product Name | Custom Length Solar Cable with MC4 Connector |
| Product Category | Solar PV Cable with MC4 Connector |
| Application | Solar panels, PV systems, solar power stations, DC circuits and inverter wiring |
| Structure | Custom length copper solar PV cable with female and male MC4 connectors |
| Features | Customizable length, waterproof, dustproof, UV resistant, weather resistant and easy to install |
| Standard / Certification | TUV 1000V DC, IEC 60529 IP67, UL94-V0 flame class |
Technical Parameters
| Rated Voltage | 1000V DC |
| Suitable Cable Size | 2.5mm² to 10mm² / 14AWG to 8AWG |
| Rated Current | 22A / 30A depending on cable size |
| Test Voltage | 6KV / 50Hz, DC 8KV 1min |
| Protection Degree | IP67 / IP2X |
| Insulation Material | PC / PA / PPO / TPE |
| Contact Material | Silver plated copper / tinned copper |
| Operating Temperature | -40°C to +90°C |
| Flame Class | UL94-V0 |
| Contact Resistance | ≤5mΩ |
| Locking System | Snap-in auto-lock |
Main Features
- Custom length solar cable helps match different solar panel layouts and installation distances.
- Copper conductor provides low resistance and stable power transmission.
- MC4 connector with auto-lock design makes field installation quick and reliable.
- Electron-beam cross-linked insulation offers excellent resistance to UV, heat, cold, oil and abrasion.
- Low smoke, halogen free and flame retardant material improves safety in PV systems.
- Suitable for rooftop solar systems, solar power stations, DC circuits and inverter wiring.
Image Description

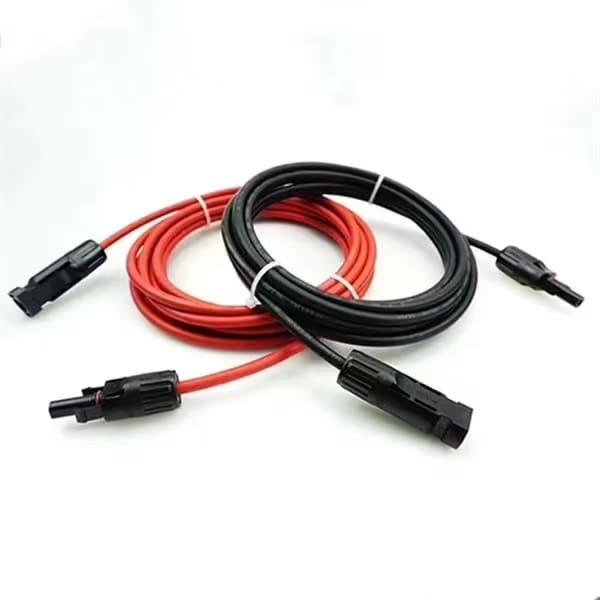

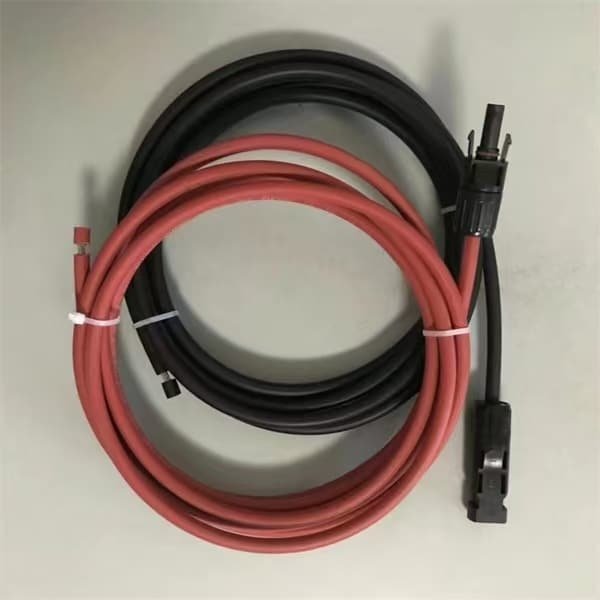

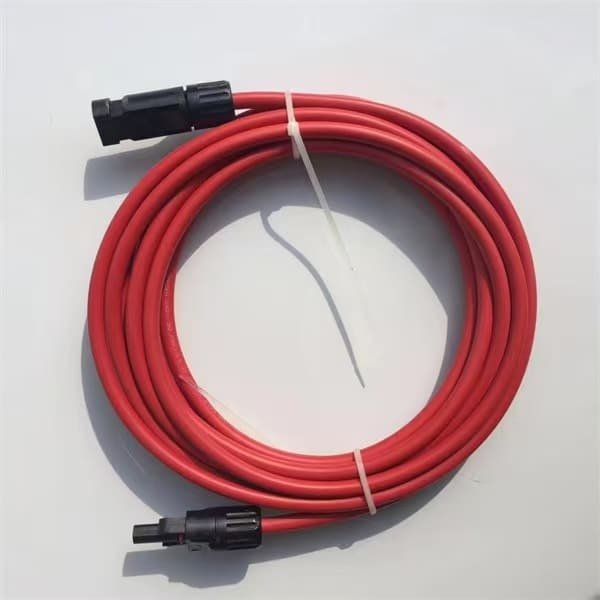

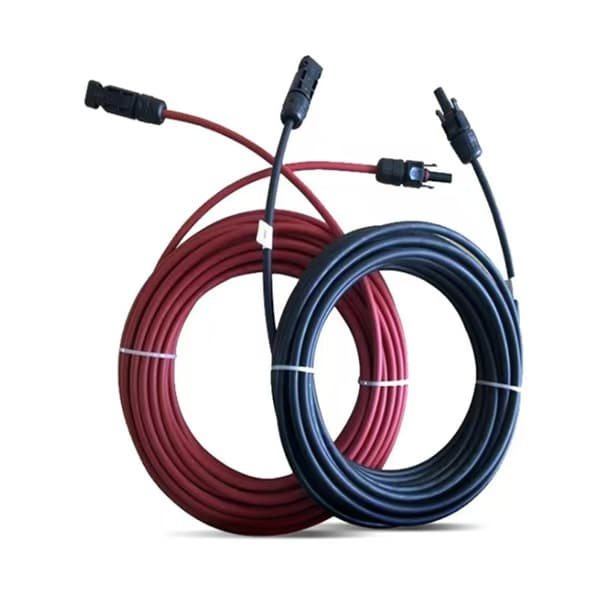

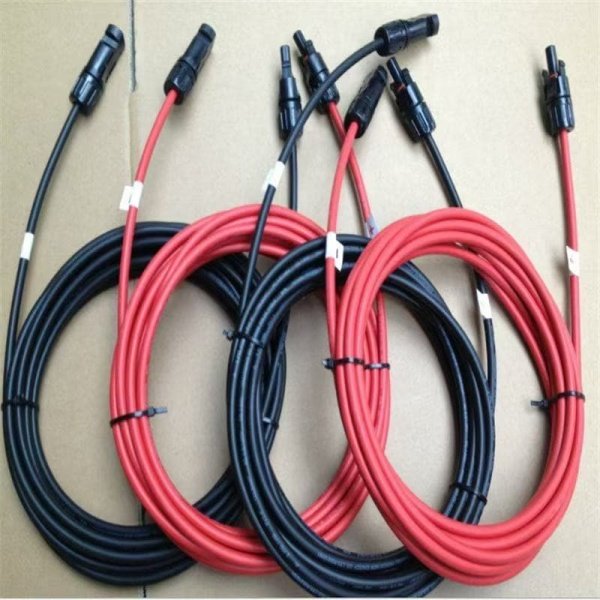

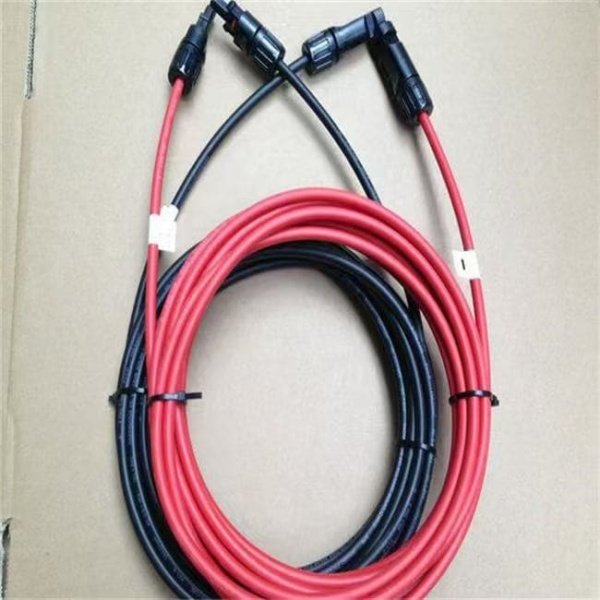

The product image shows a custom length solar cable with MC4 connector, designed for solar panel extension, photovoltaic system wiring and outdoor DC power transmission.
Request a Quote
If you need custom length solar cable with MC4 connector, please send us your required cable length, conductor size, connector type, color and order quantity. We can provide customized solar PV cable solutions for your project.
