6mm² Solar PV Cable with MC4 Connector
6mm² Solar PV Cable with MC4 Connector is used for connecting solar panels, extending PV cables and building reliable photovoltaic power systems. The copper conductor helps reduce resistance and minimize power loss, while the electron-beam cross-linked insulation provides excellent resistance to heat, cold, UV, oil, abrasion, ozone and outdoor weathering.
This solar extension cable with MC4 connector is suitable for solar panels, solar power stations, rooftop PV systems, DC circuits and inverter wiring. The red cable with male connector is commonly used for positive polarity, and the black cable with female connector is commonly used for negative polarity. Please confirm polarity before final connection.
Product Details
| Product Name | 6mm² Solar PV Cable with MC4 Connector |
| Product Category | Solar PV Cable with MC4 Connector |
| Application | Solar panels, photovoltaic systems, solar power stations, DC circuits and inverter wiring |
| Structure | 6mm² / 10AWG copper solar PV cable with female and male MC4 connectors |
| Features | Waterproof, dustproof, UV resistant, weather resistant, flame retardant and easy to connect |
| Standard / Certification | TUV 1000V DC, IEC 60529 IP67, UL94-V0 flame class |
Technical Parameters
| Rated Voltage | 1000V DC |
| Conductor Size | 6mm² / 10AWG |
| Rated Current | 30A |
| Test Voltage | 6KV / 50Hz, DC 8KV 1min |
| Protection Degree | IP67 |
| Insulation Material | PC / PA / PPO / TPE |
| Contact Material | Silver plated copper / tinned copper |
| Operating Temperature | -40°C to +90°C |
| Flame Class | UL94-V0 |
| Contact Resistance | ≤5mΩ |
| Locking System | Snap-in auto-lock |
Main Features
- 6mm² solar PV cable provides low resistance and stable current transmission.
- MC4 connector adopts auto-lock structure for quick and reliable installation.
- Weatherproof cable is designed to withstand heat, cold, UV and moisture.
- Low smoke, halogen free and flame retardant insulation improves safety.
- Flexible cable structure makes stripping and field installation easier.
- Suitable for solar panel extension, PV power systems and inverter wiring.
Image Description

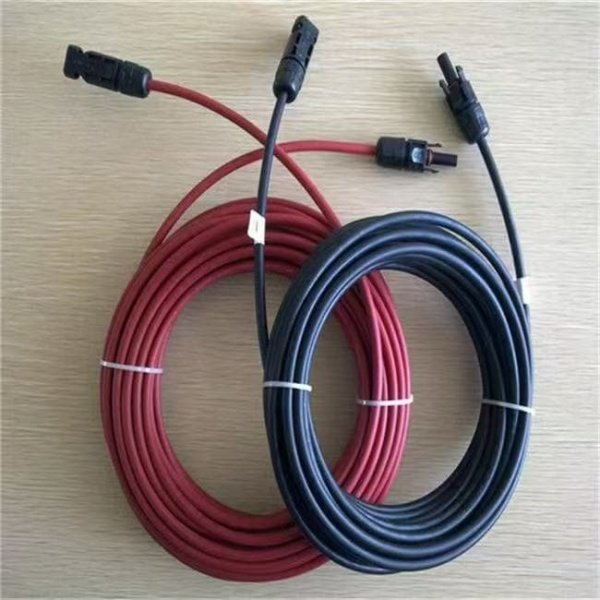

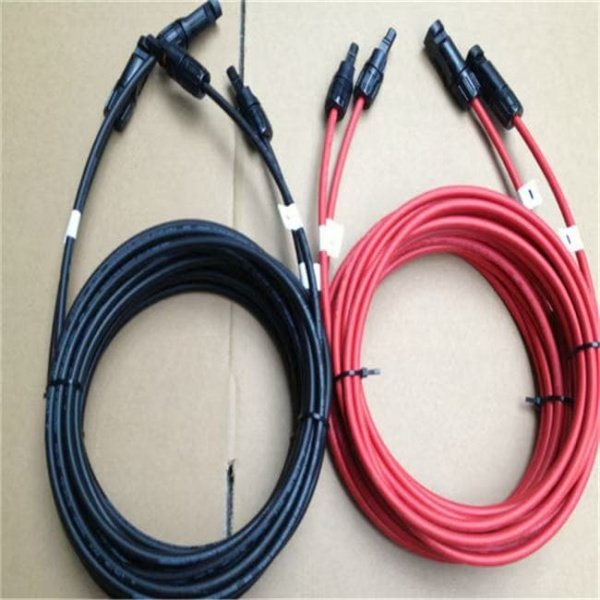

The product image shows a 6mm² solar PV extension cable with red and black wires and MC4 connectors. It is designed for solar panel connection, photovoltaic system installation and outdoor DC power transmission.
Request a Quote
If you need 6mm² solar PV cable with MC4 connector, please send us your required cable length, connector type, color, quantity and project application. We can provide suitable solar extension cable solutions for solar panels and PV power systems.
